Product System / Water Access / Technical & Product Communication

Bìos

A product system concept for floating-school communities, combining biosand filtration, hygiene support, maintenance tools, and educational communication into one classroom water station.

Press and drag to rotate the model.

Role: User research, product system development, technical visualization, presentation design
Time: 2025
Tools: Adobe InDesign / SolidWorks / Procreate
Project Type: Academic Project
Status: Academic / Concept

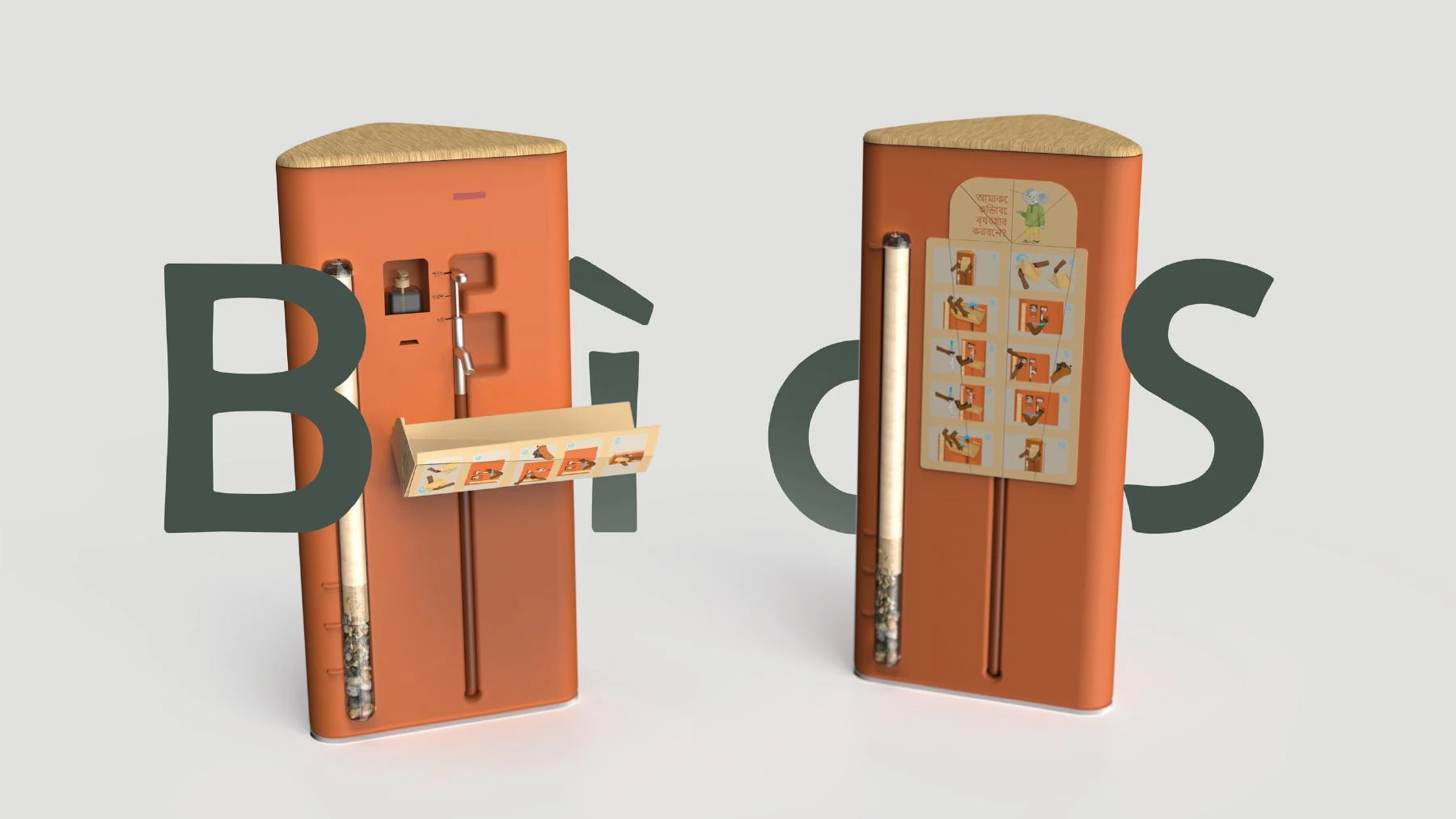

Case Study

Bìos case study.

Context & Brief

Research defines the classroom context, water-access challenges, usability needs, safety requirements, and local constraints.

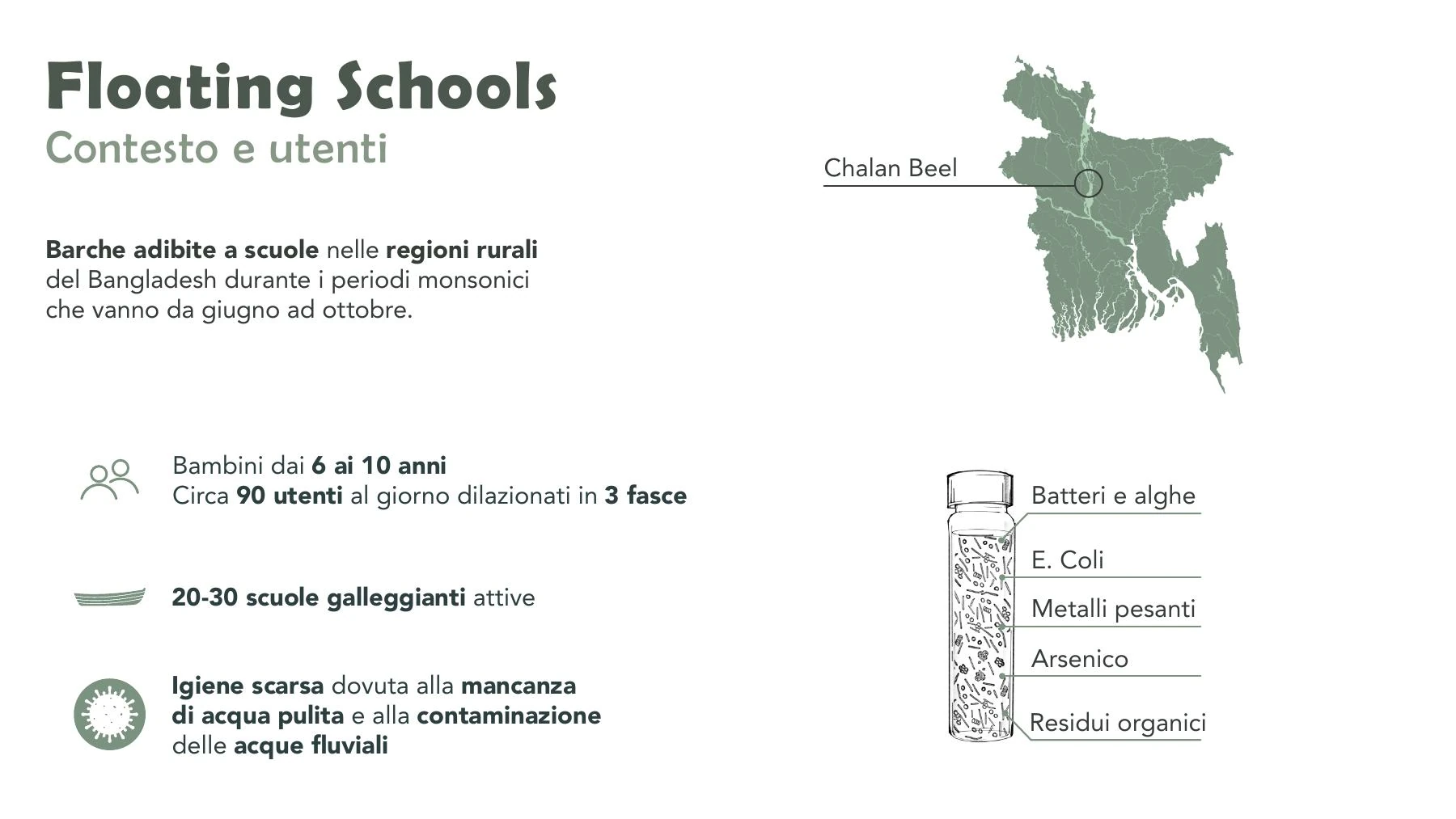

Bìos context and users page for floating schools

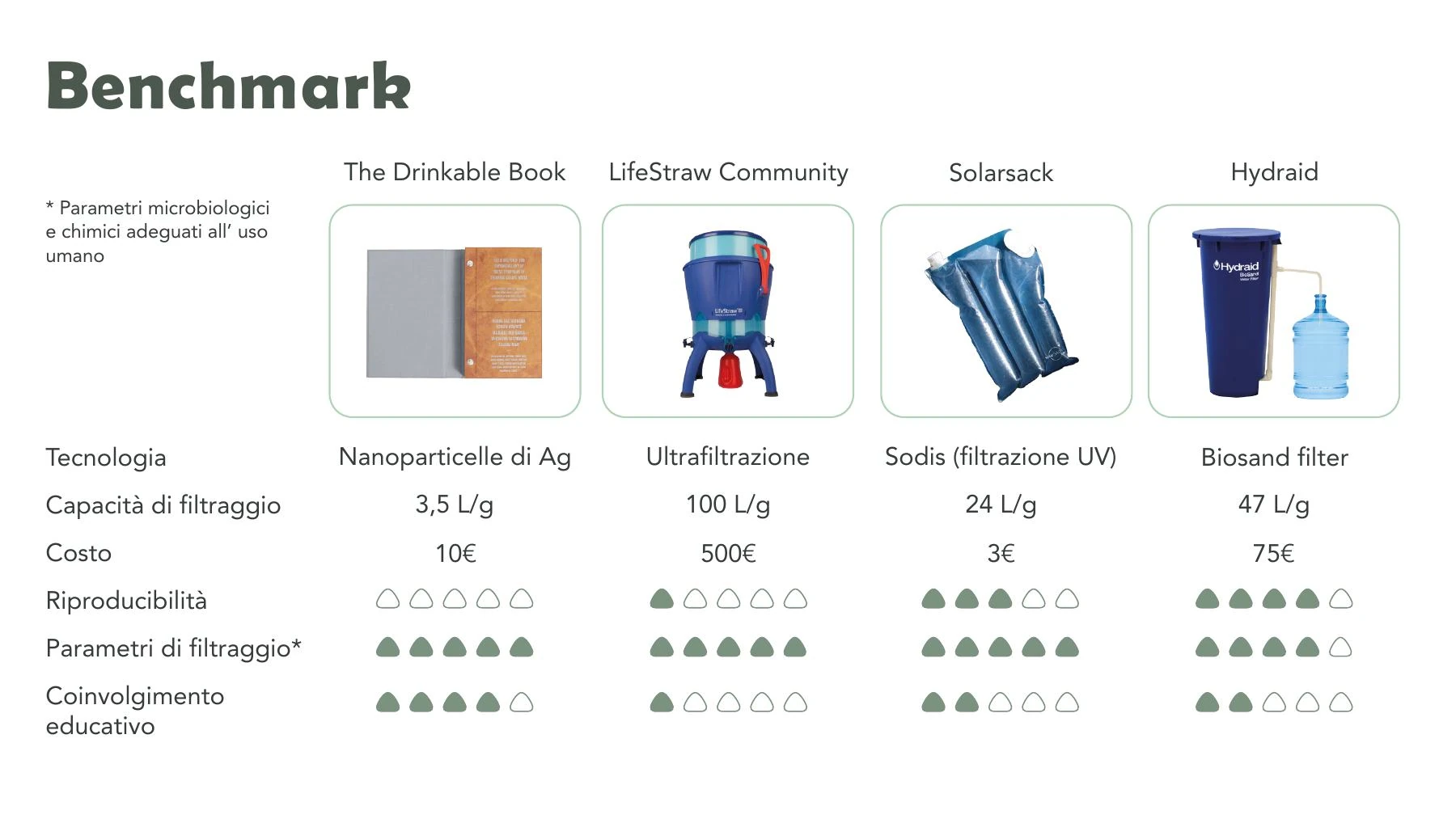

Bìos benchmark page comparing water filtration solutions

Bìos brief page showing project context and objectives

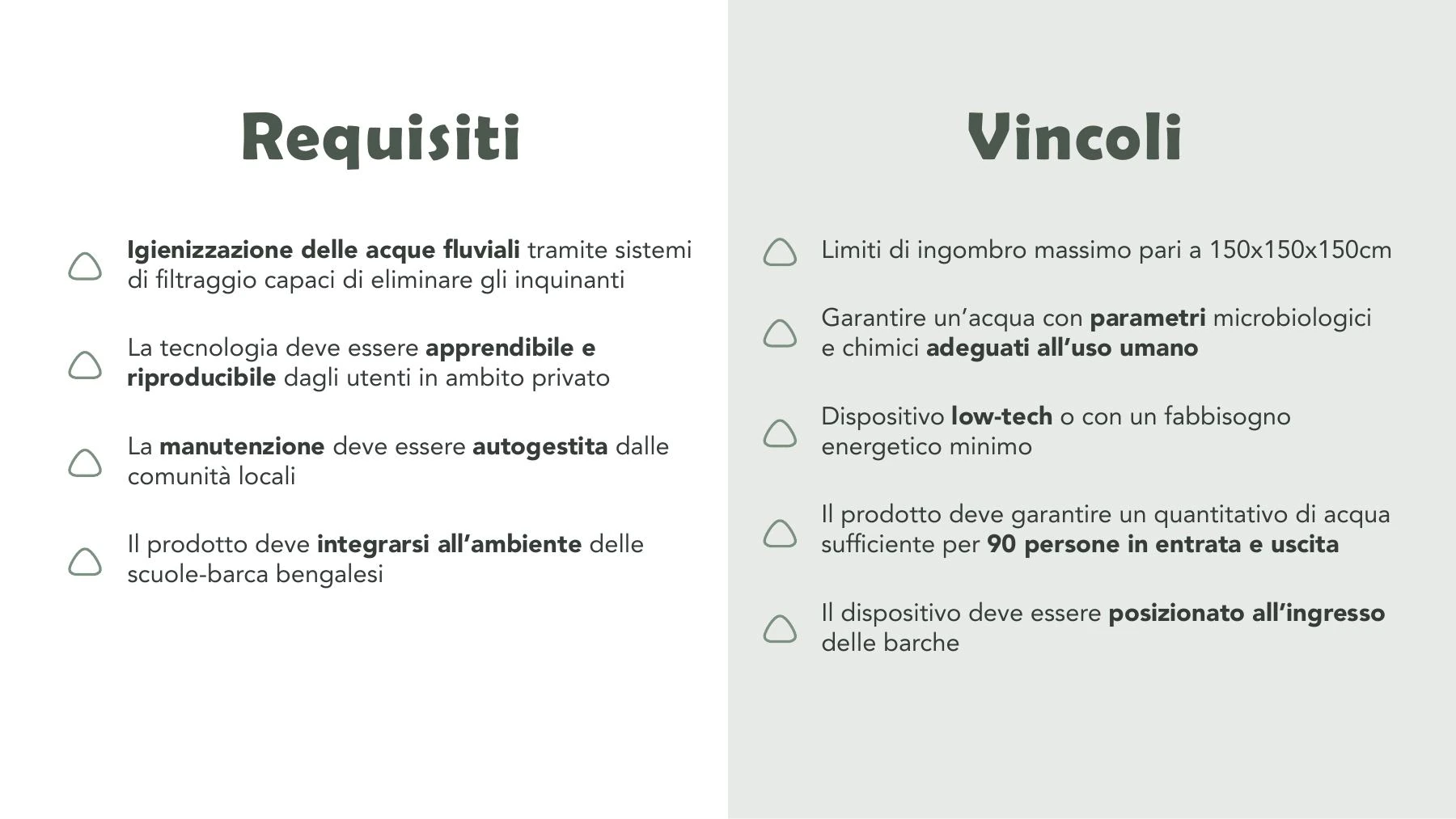

Bìos requirements and constraints page

Filtration Principle

The concept translates biosand filtration into a legible product system that teachers and children can understand and maintain.

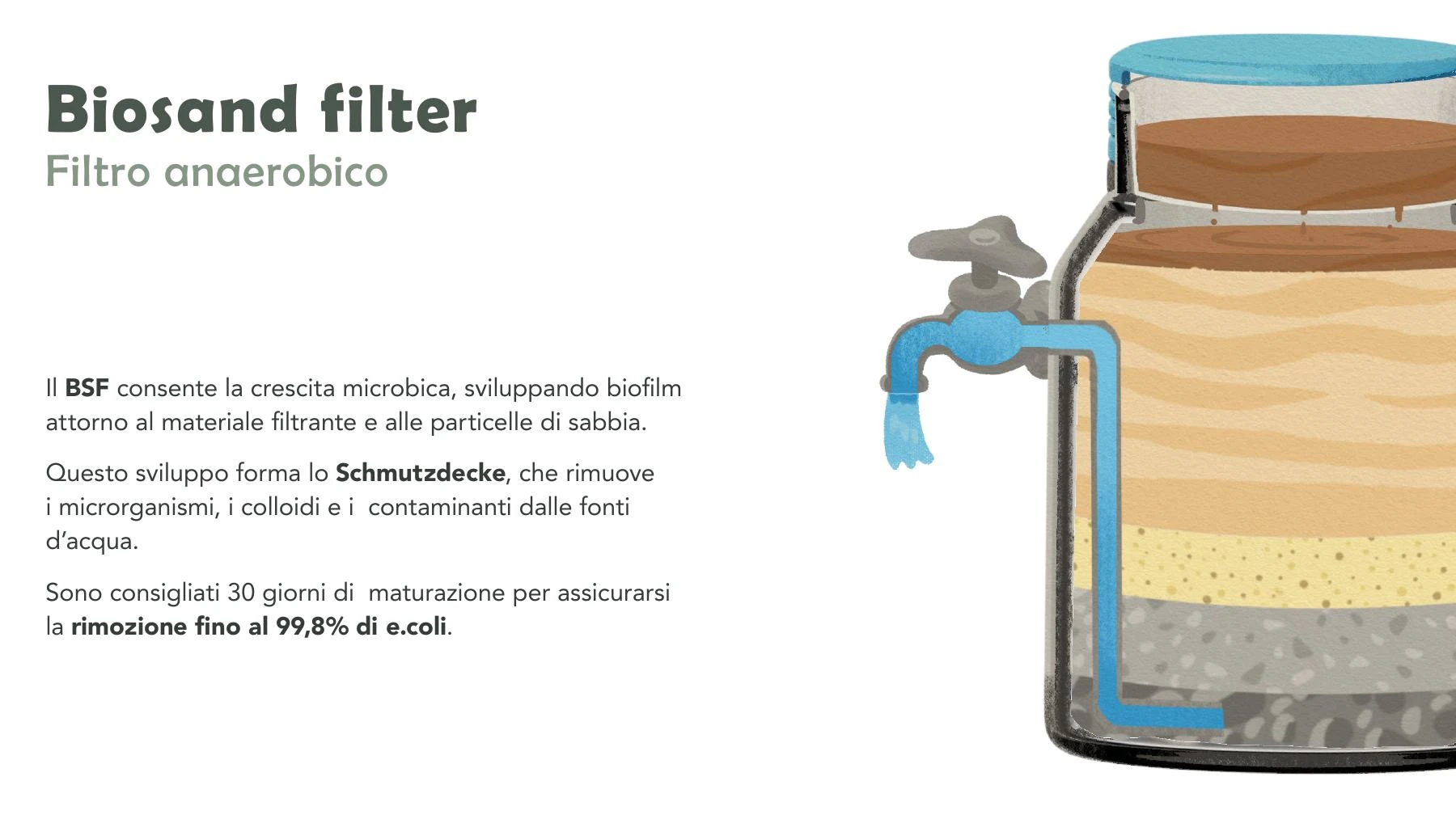

Bìos biosand and anaerobic filter explanation page

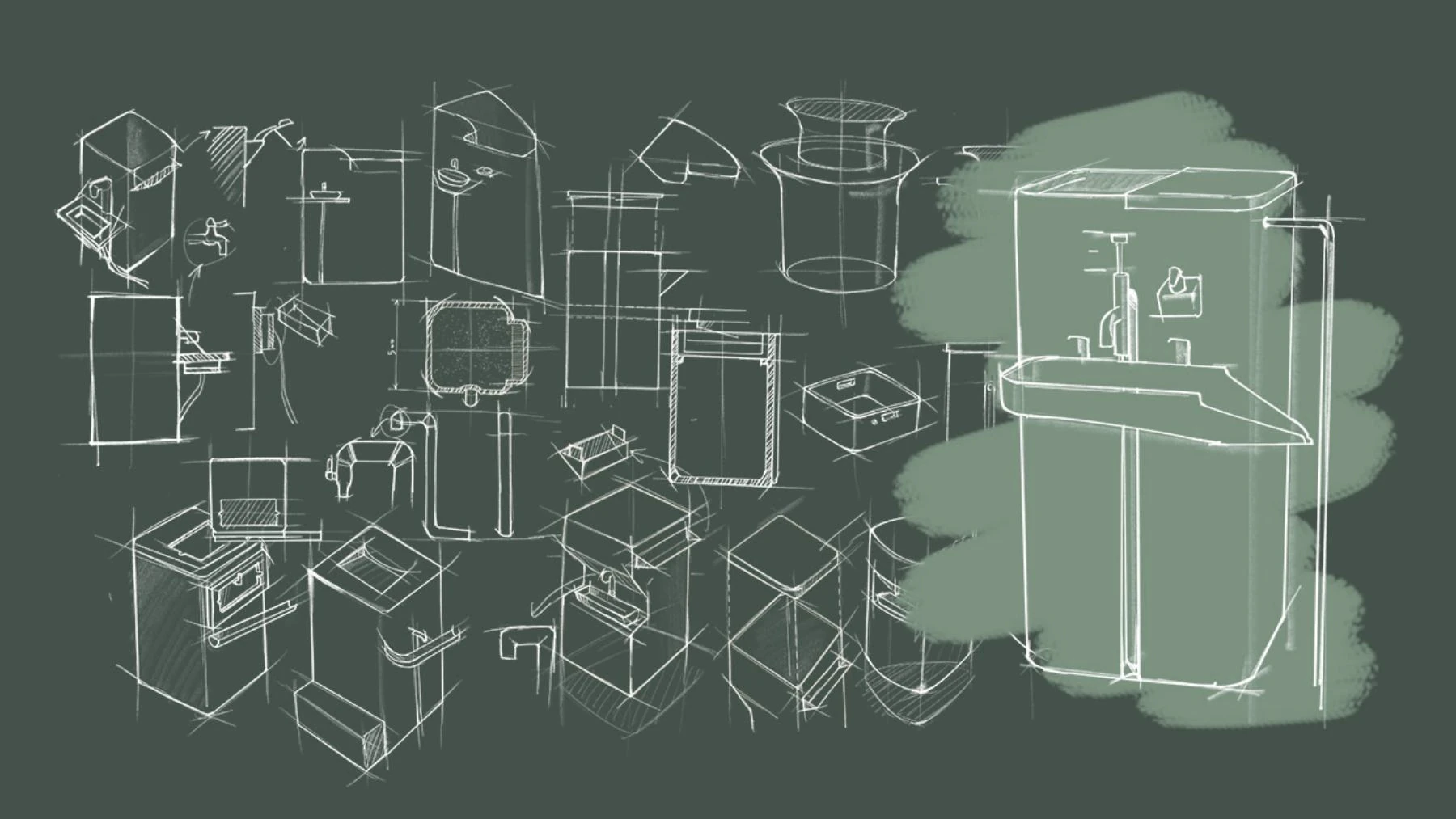

Bìos early concept sketch exploration page

Bìos material and visual direction board

Ergonomics & Form

Dimensional studies, anthropometry, and form exploration translate the system into a stable object for a floating classroom.

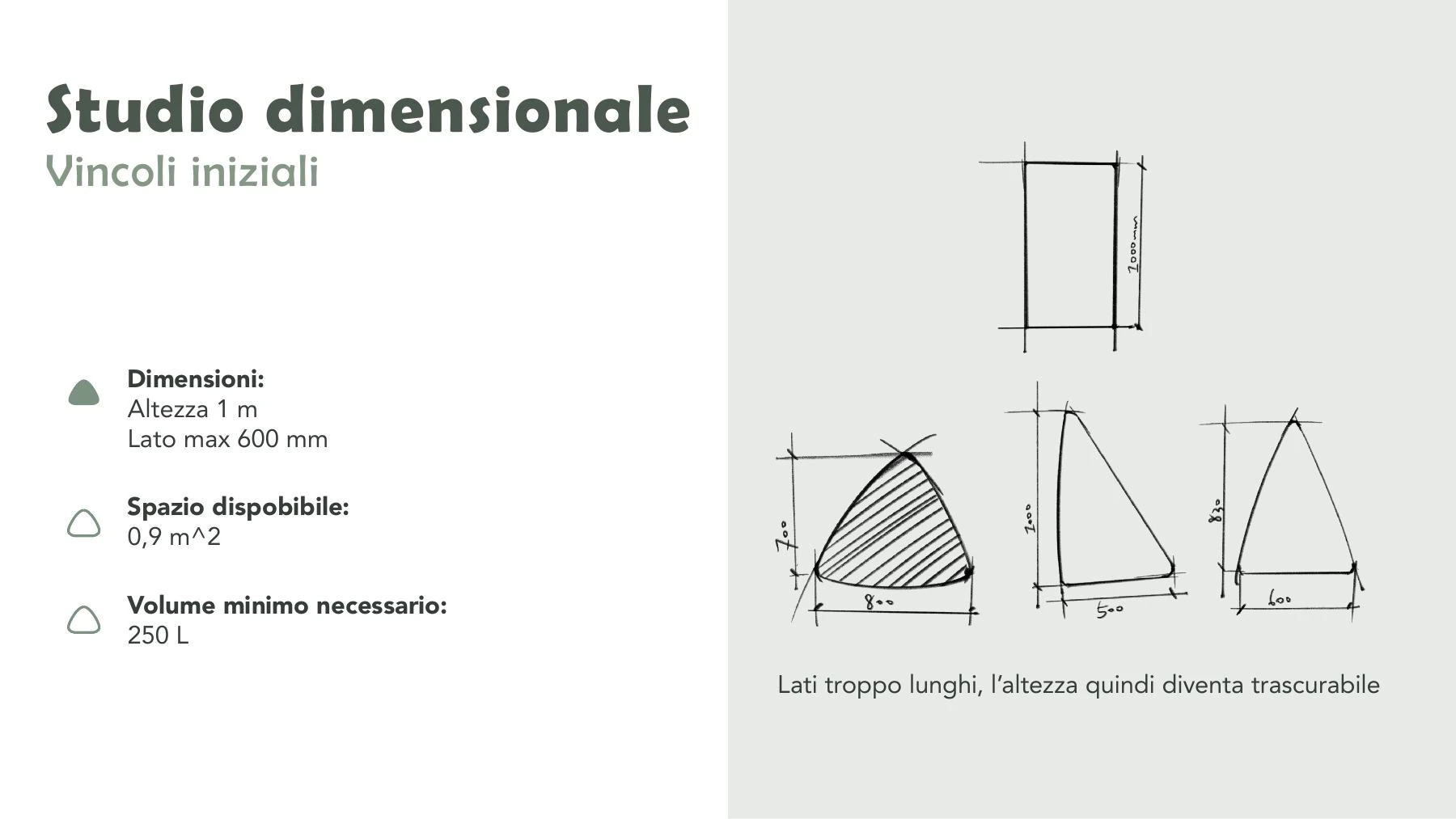

Bìos initial dimensional study page

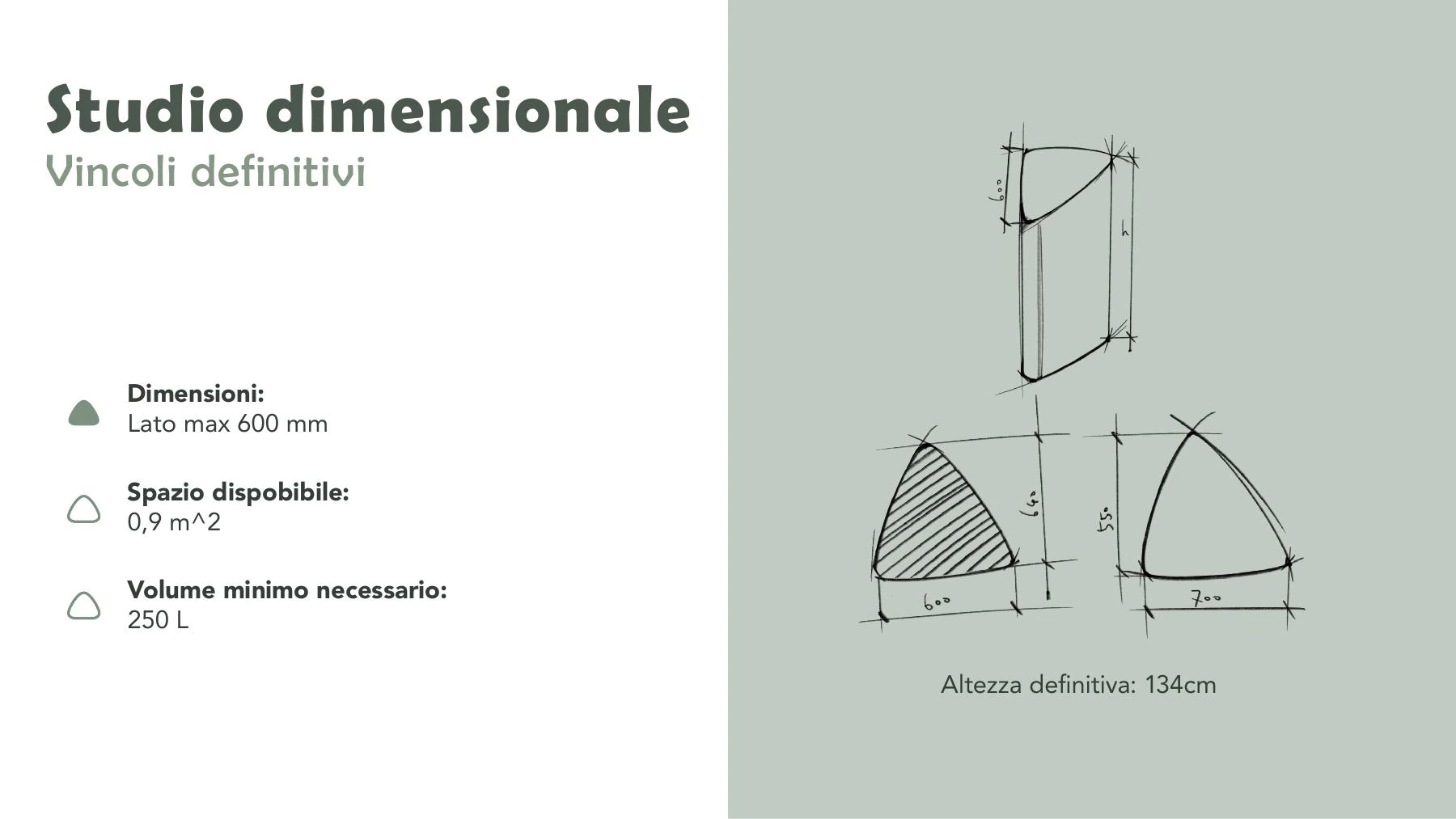

Bìos final dimensional study page

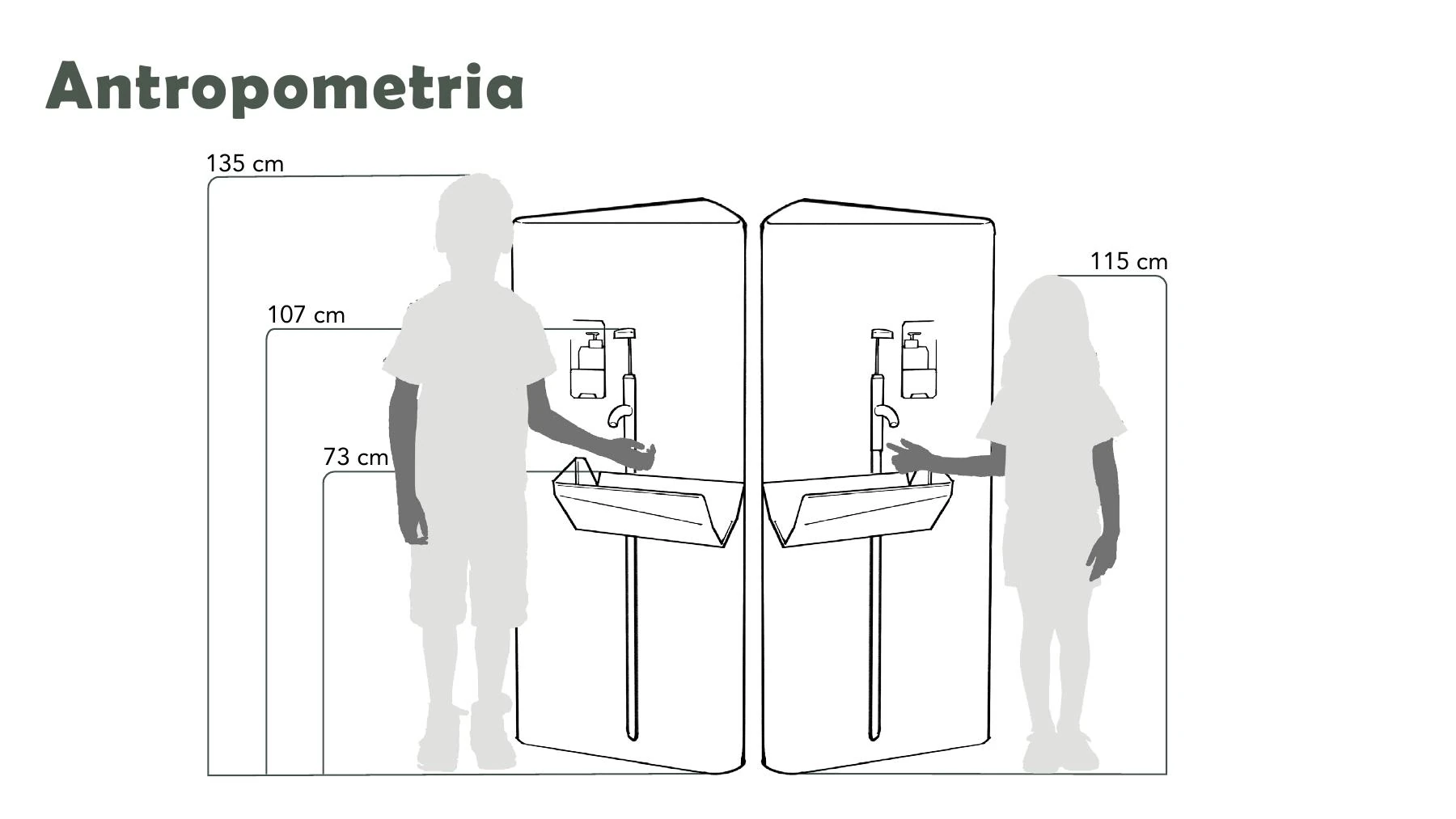

Bìos anthropometric study page

System Overview

The product architecture connects filtration, pumping, dispensing, cleaning, and positioning into one integrated water station.

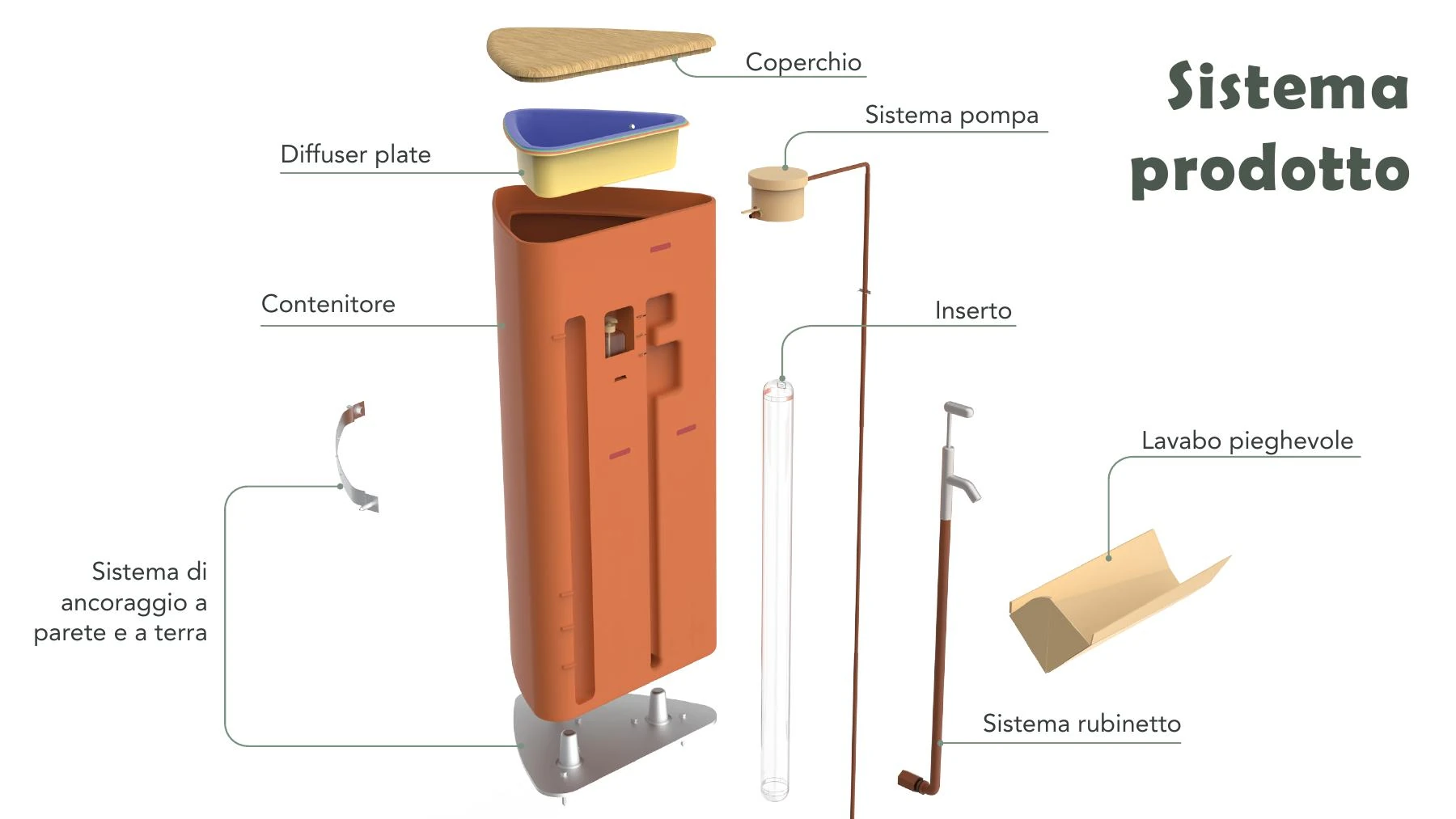

Bìos system product overview page

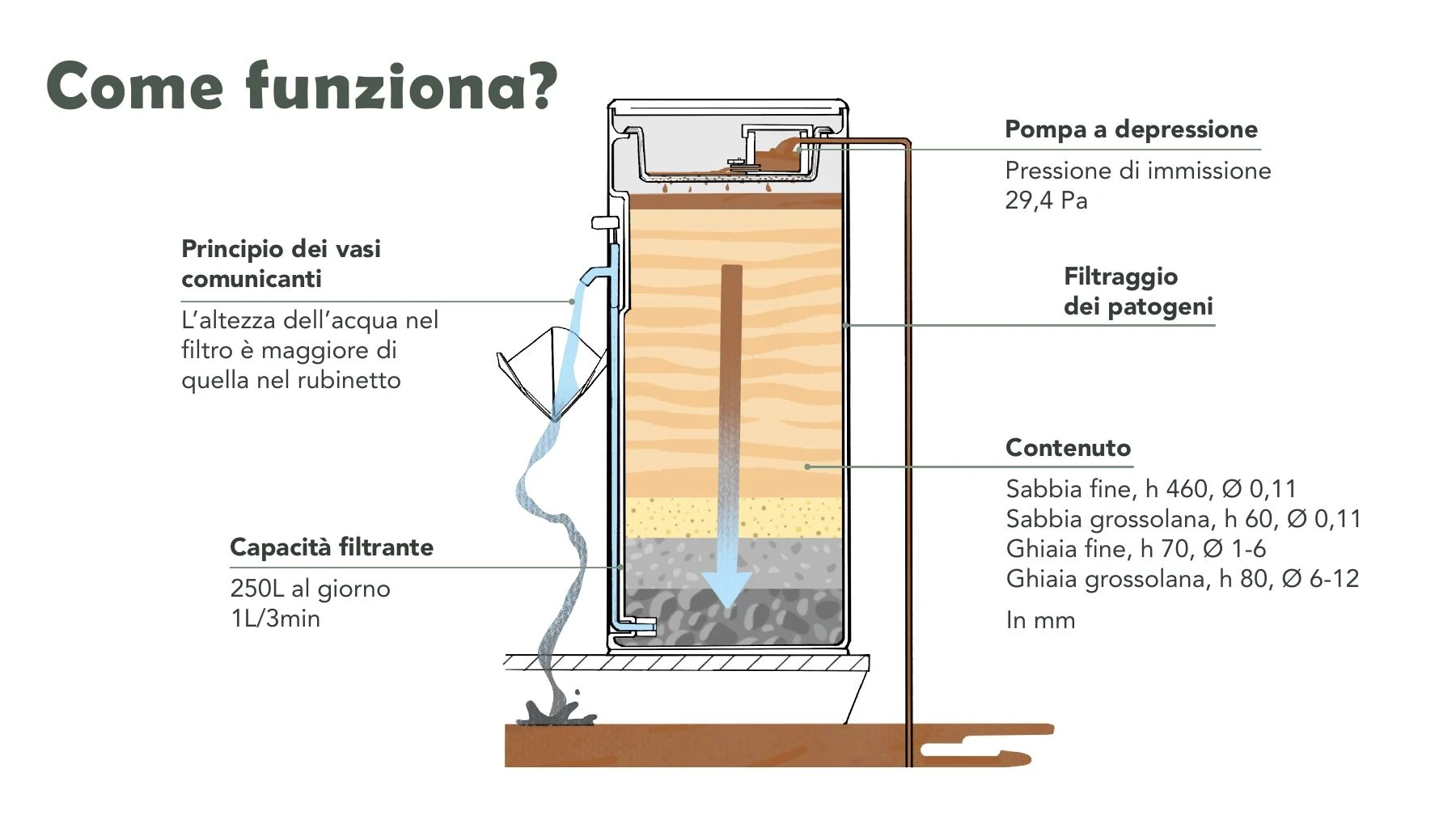

Bìos how it works filtration diagram page

Pump System

The vacuum pump is communicated as a mechanical subsystem through components, interaction sequence, and detail renderings.

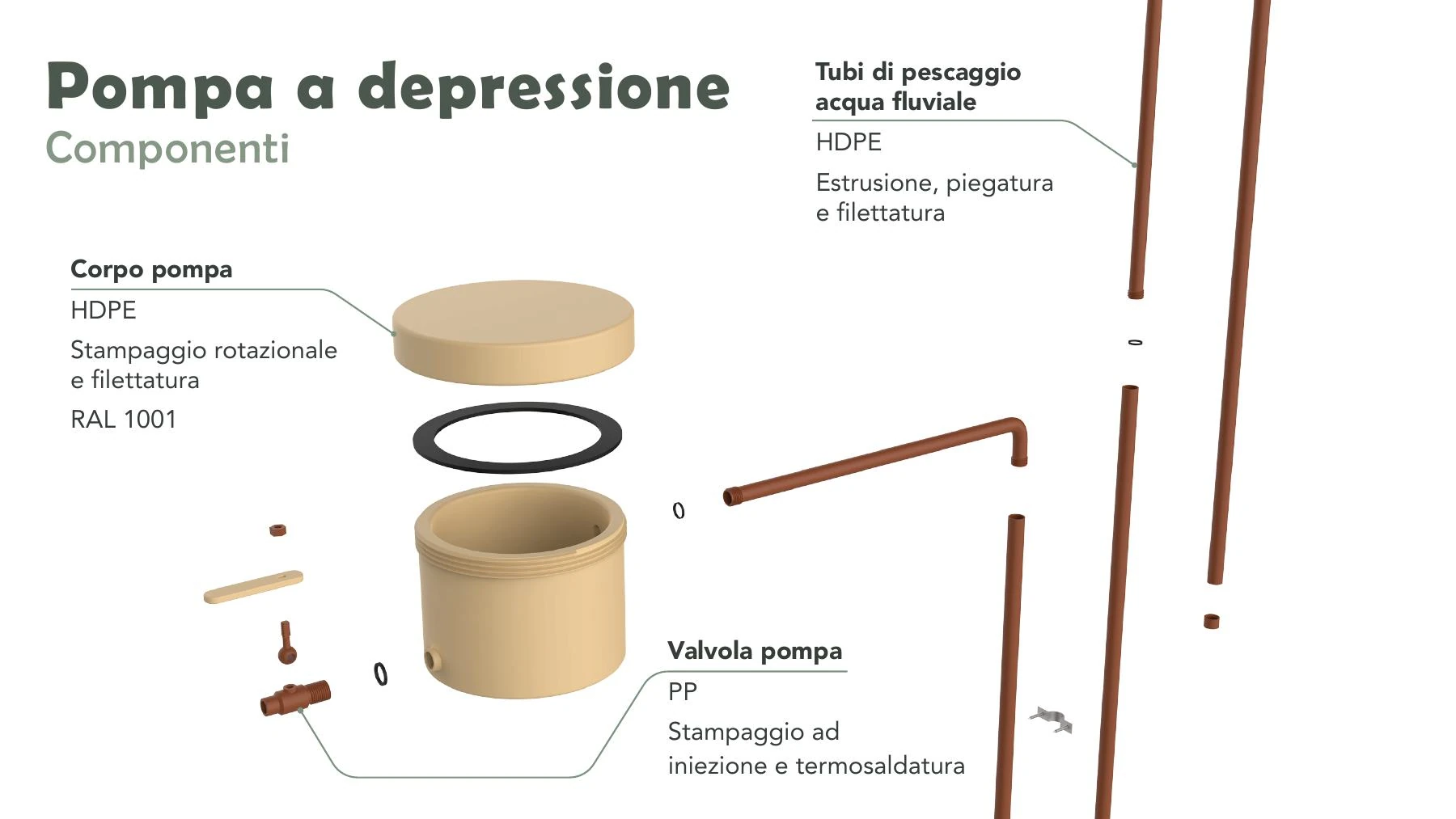

Bìos vacuum pump components page

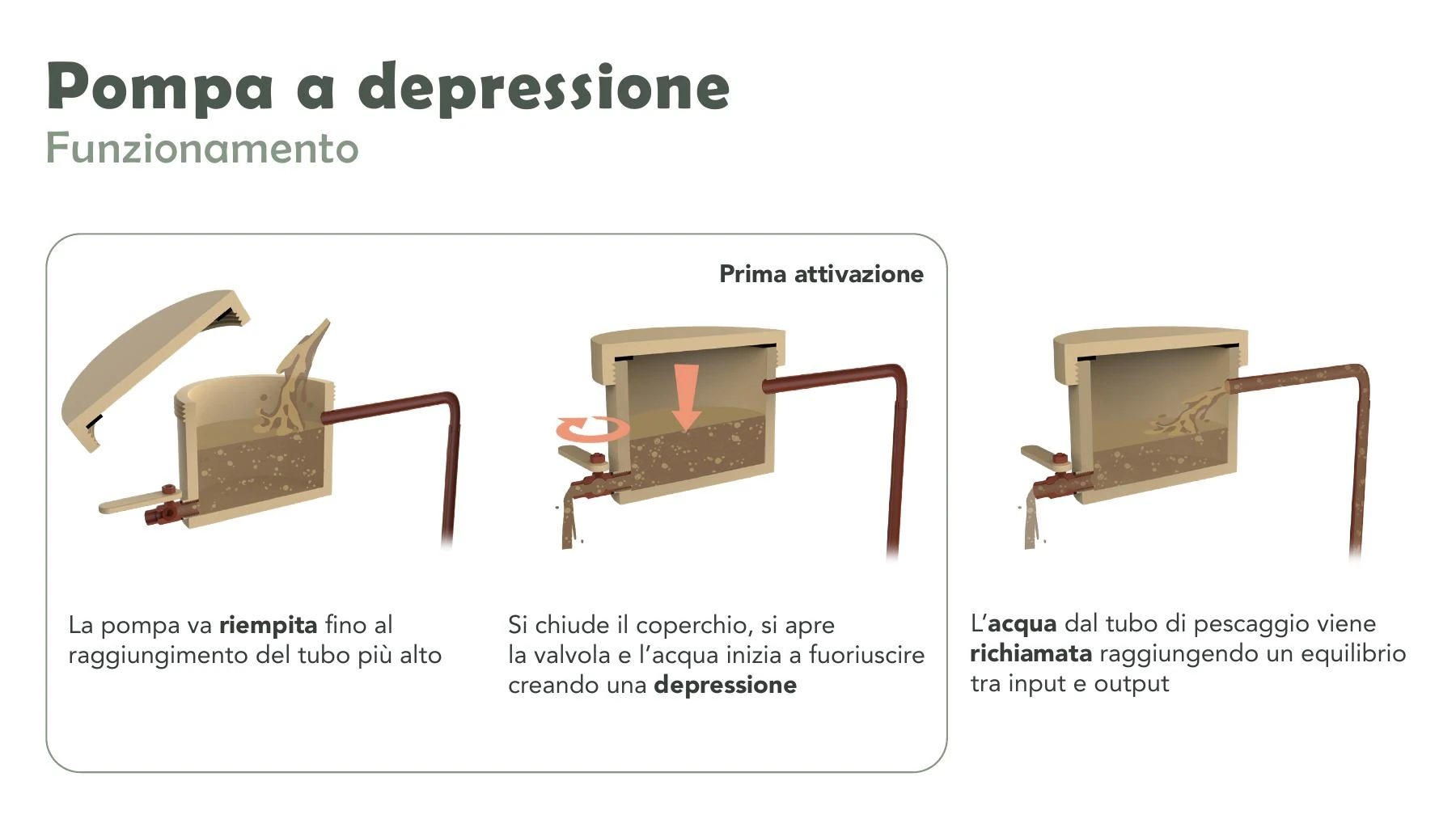

Bìos vacuum pump functioning page

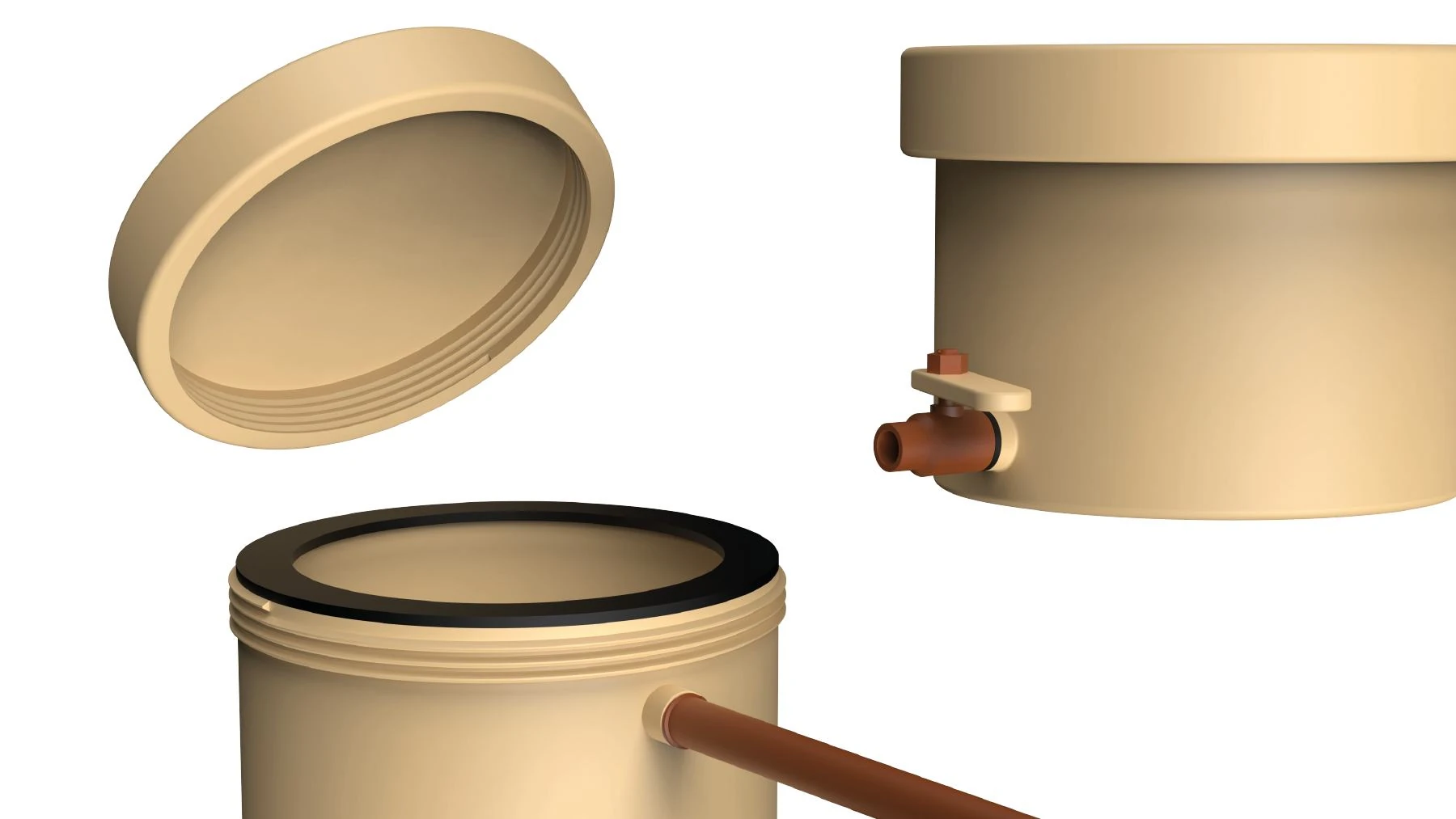

Bìos pump detail render page

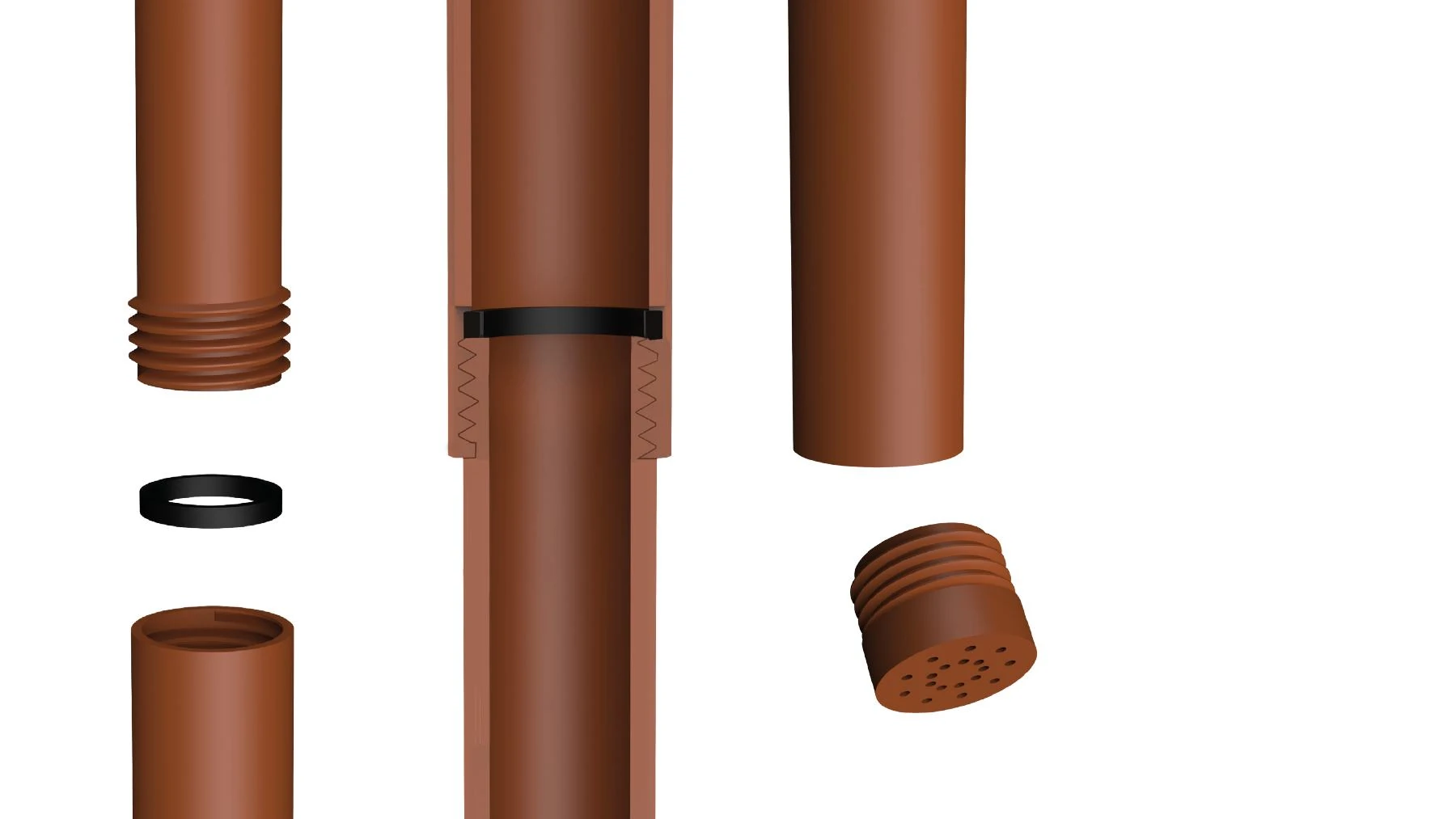

Bìos pump assembly detail page

Diffuser, Body & Water Level

Internal components organize sand separation, water distribution, structural support, and visible filter-state feedback.

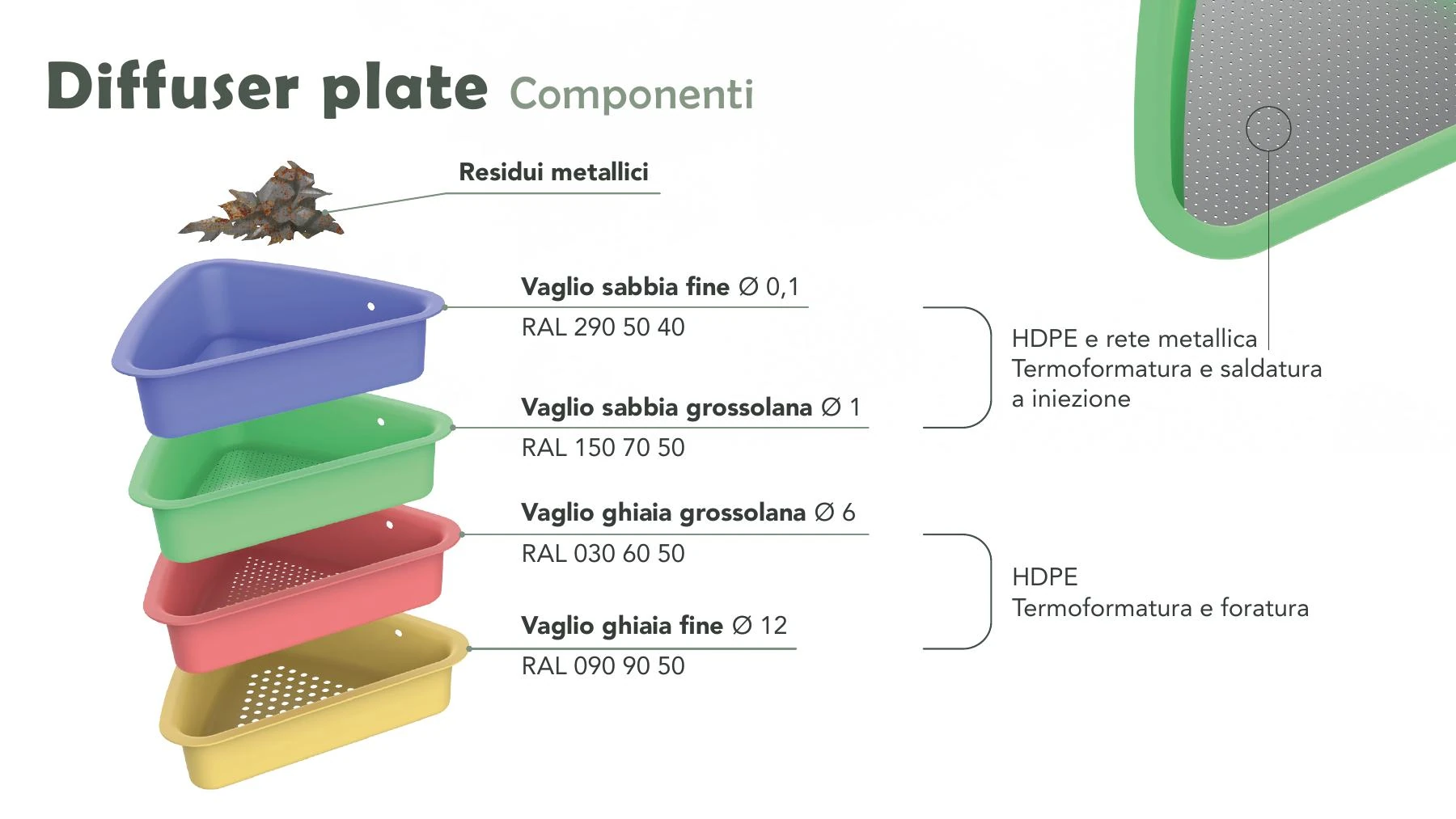

Bìos diffuser plate components page

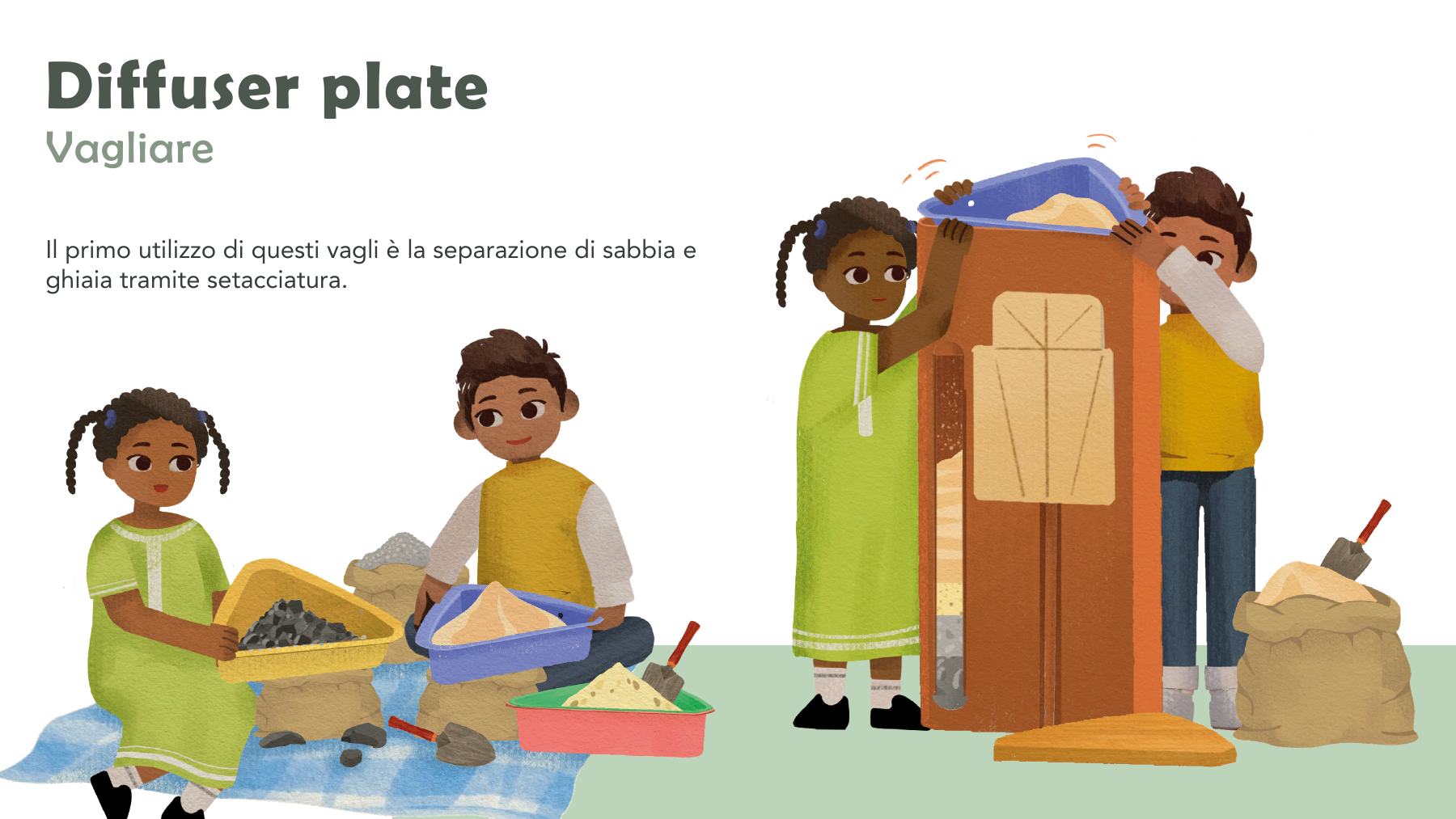

Bìos diffuser plate sieving use page

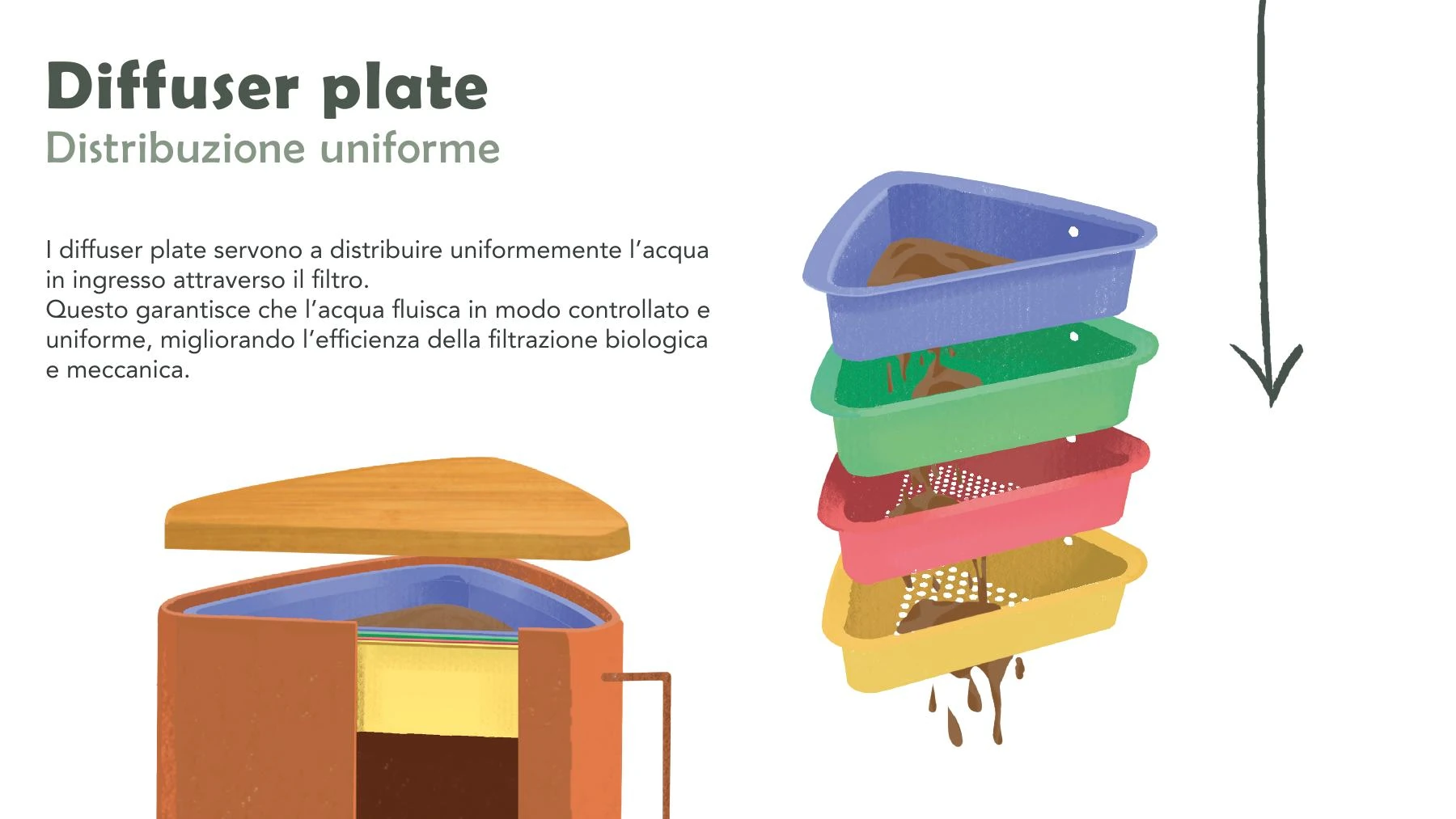

Bìos diffuser plate water distribution page

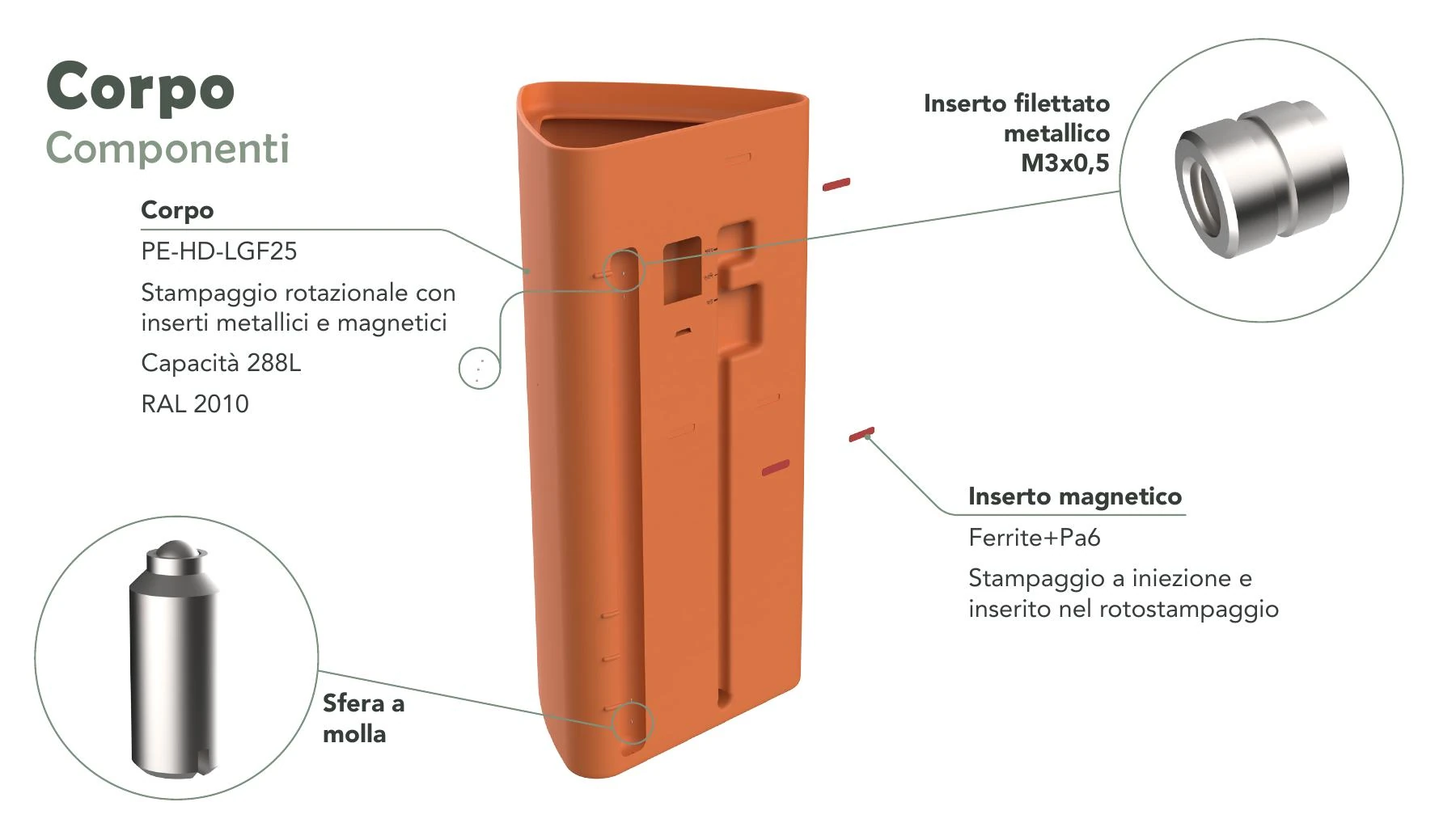

Bìos body components page

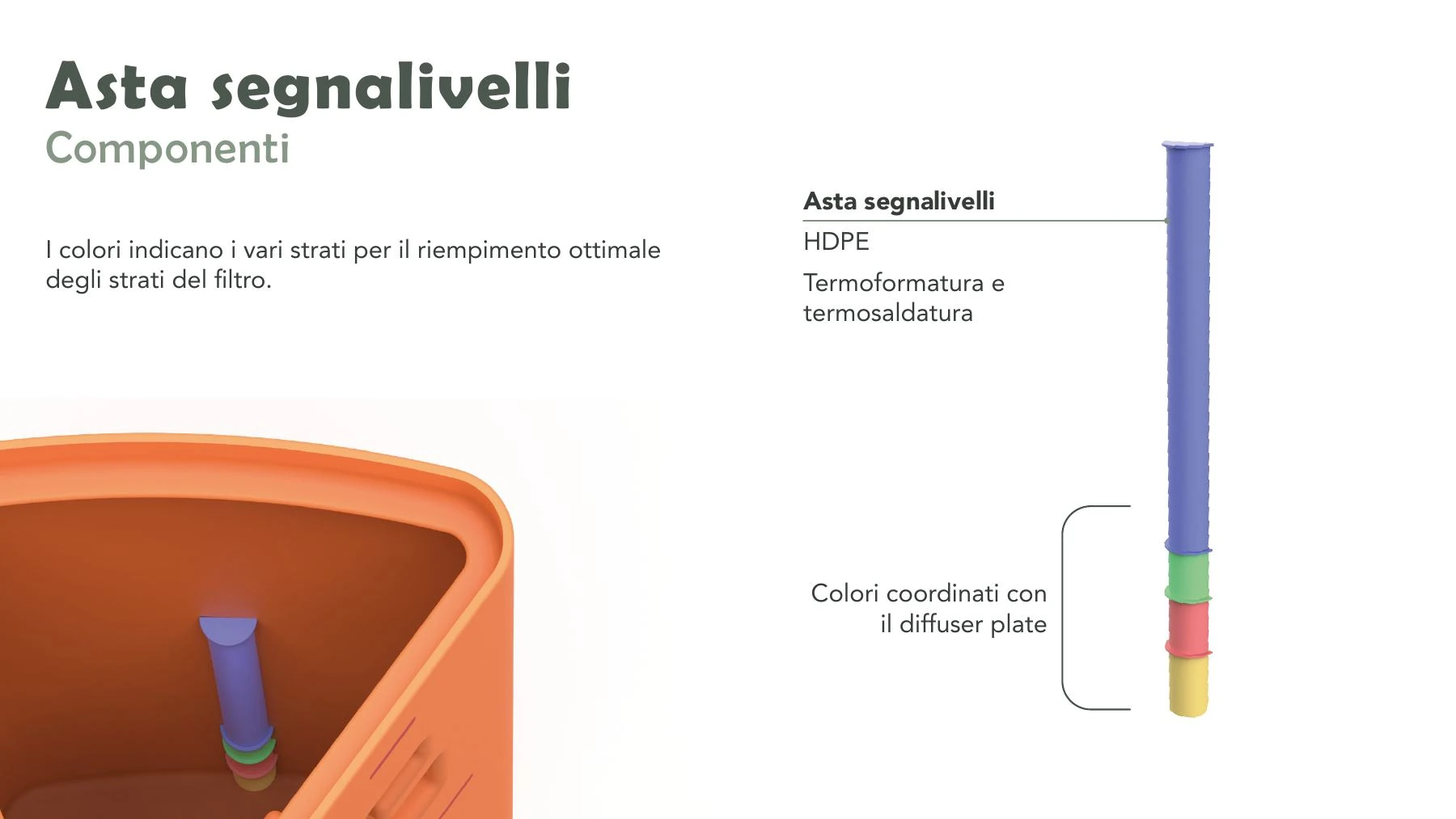

Bìos water level indicator components page

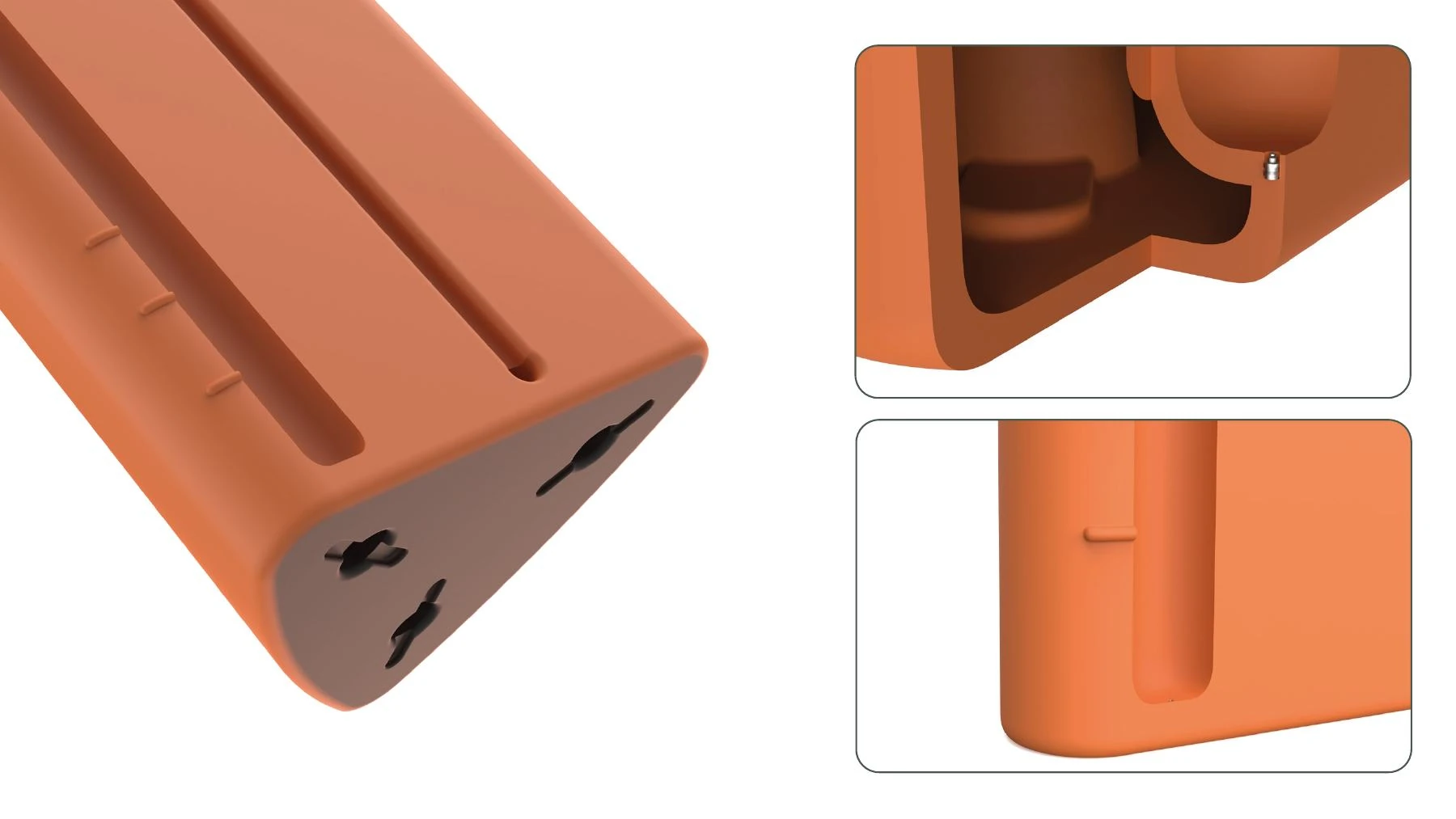

Bìos water level indicator detail render page

Faucet & Folding Basin

Water delivery, handwashing, transparent inspection, and soap storage are organized around compact classroom routines.

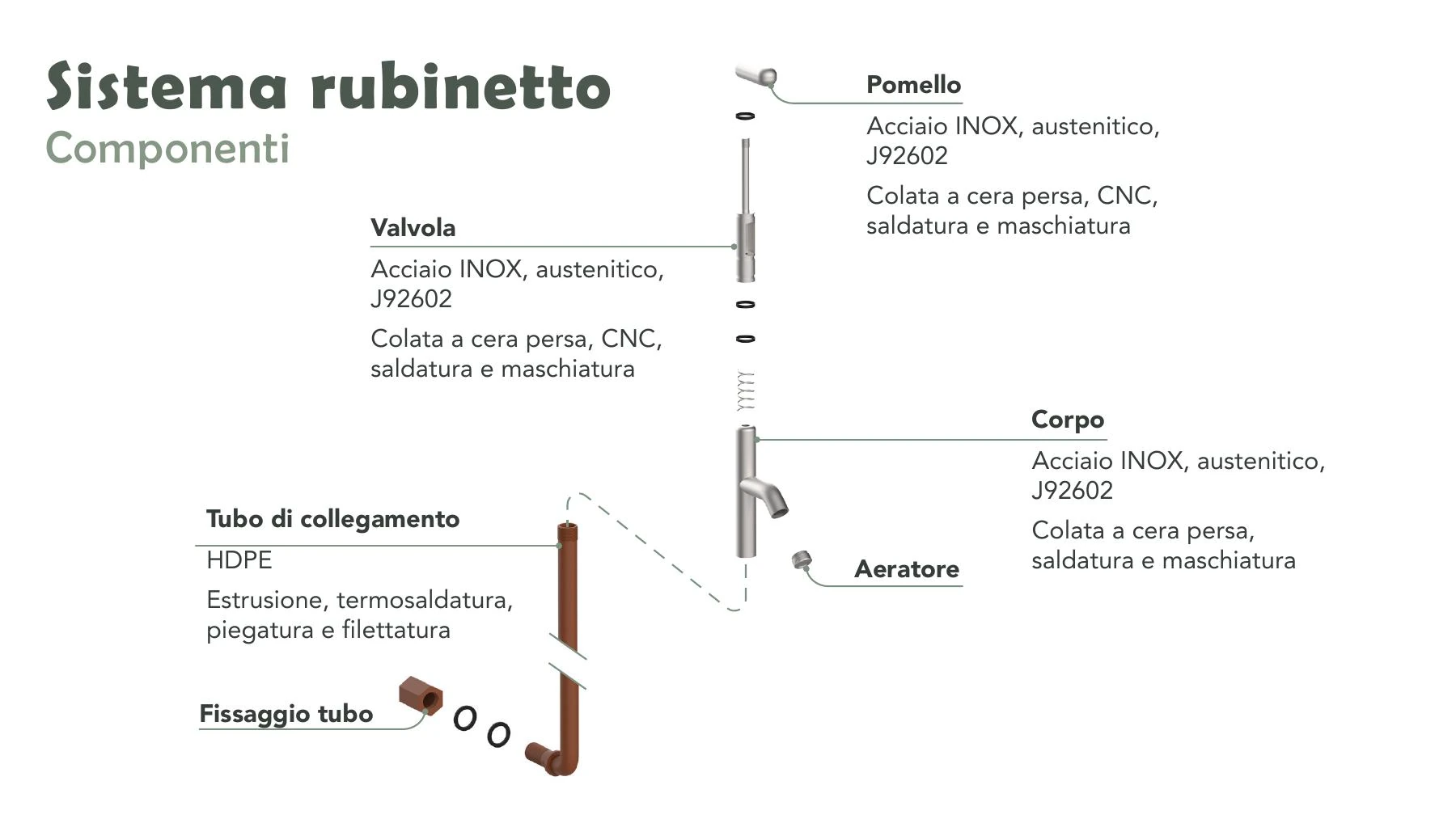

Bìos faucet system components page

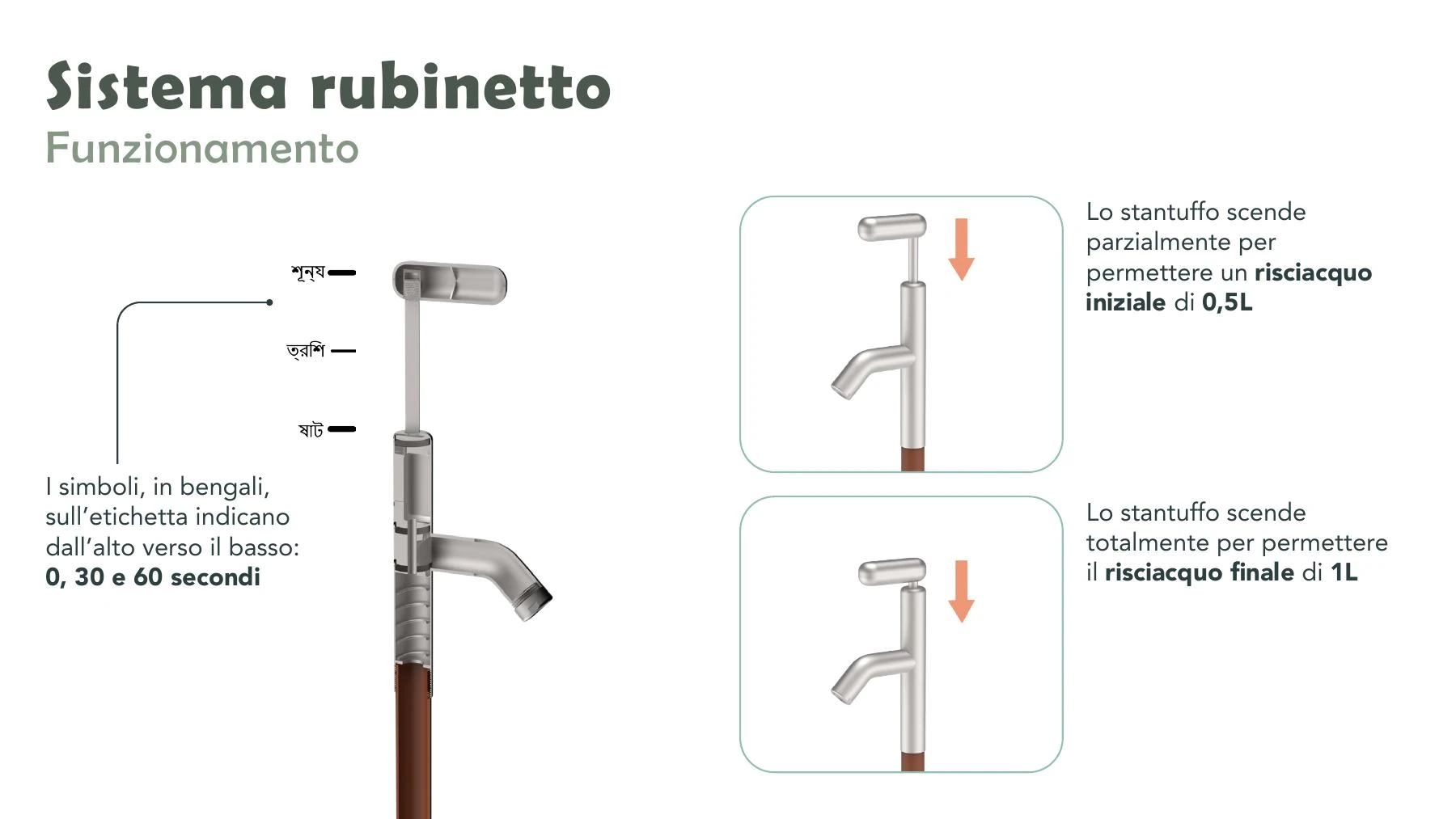

Bìos faucet system functioning page

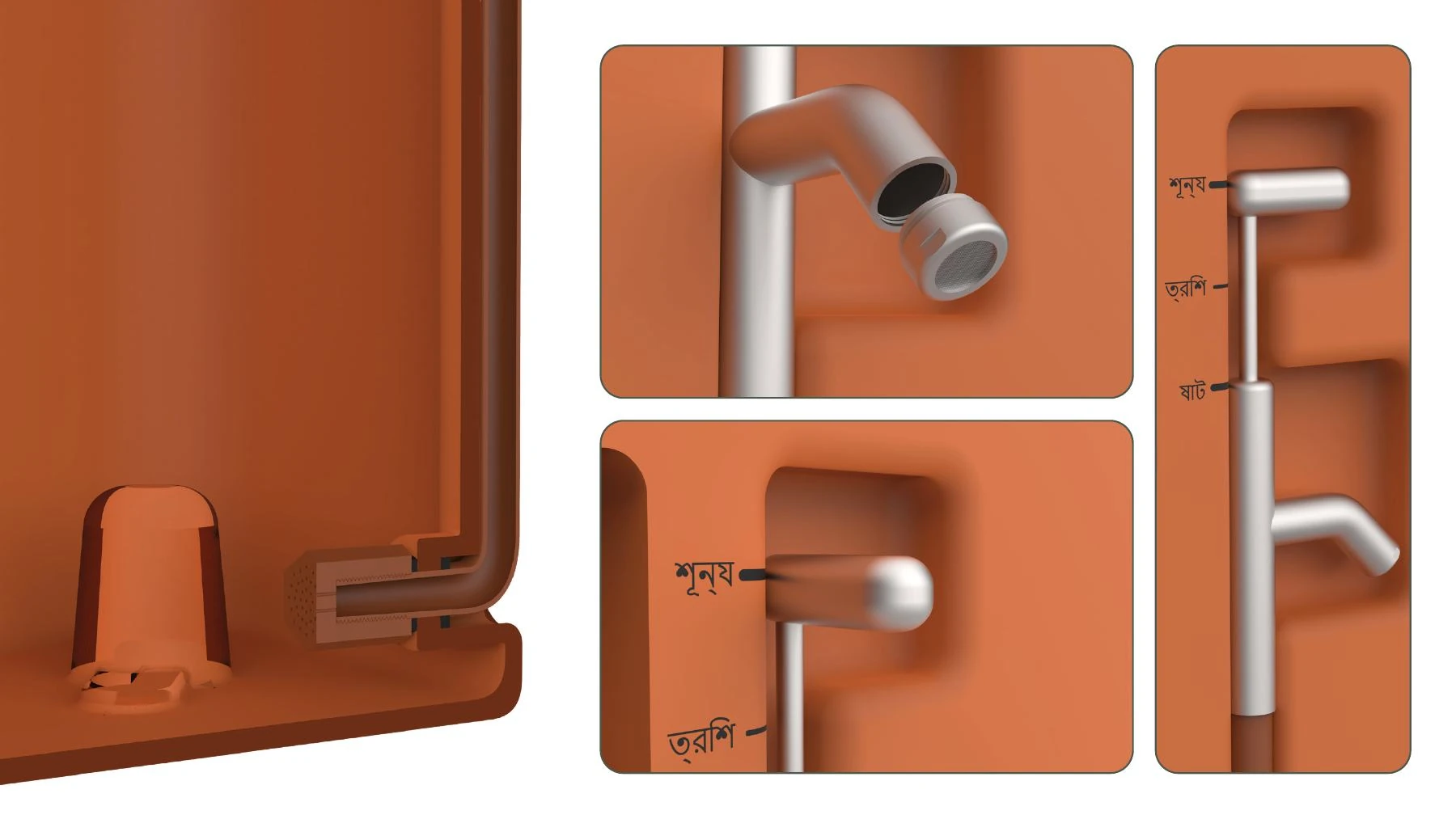

Bìos faucet detail render page

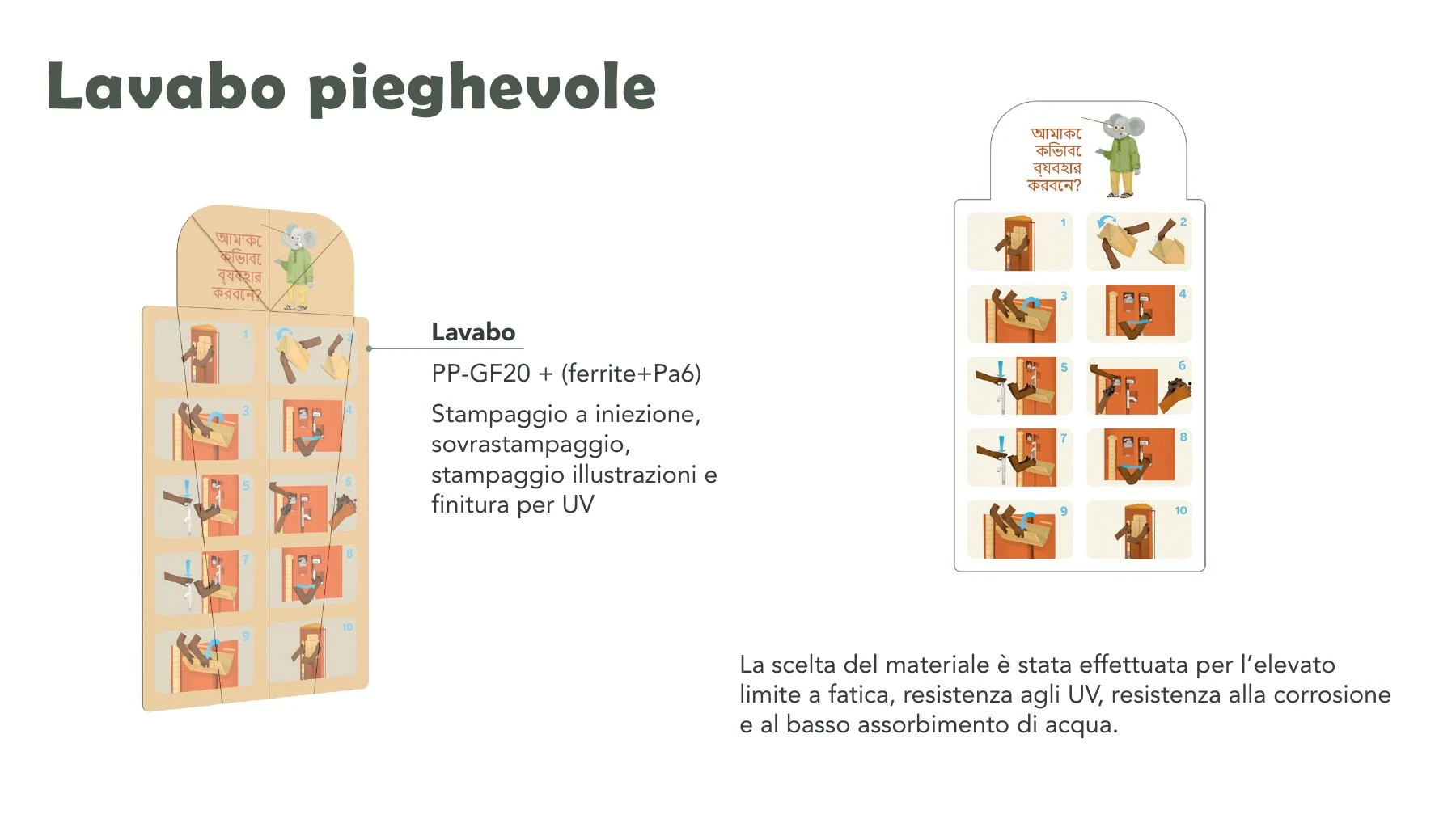

Bìos folding basin material and form page

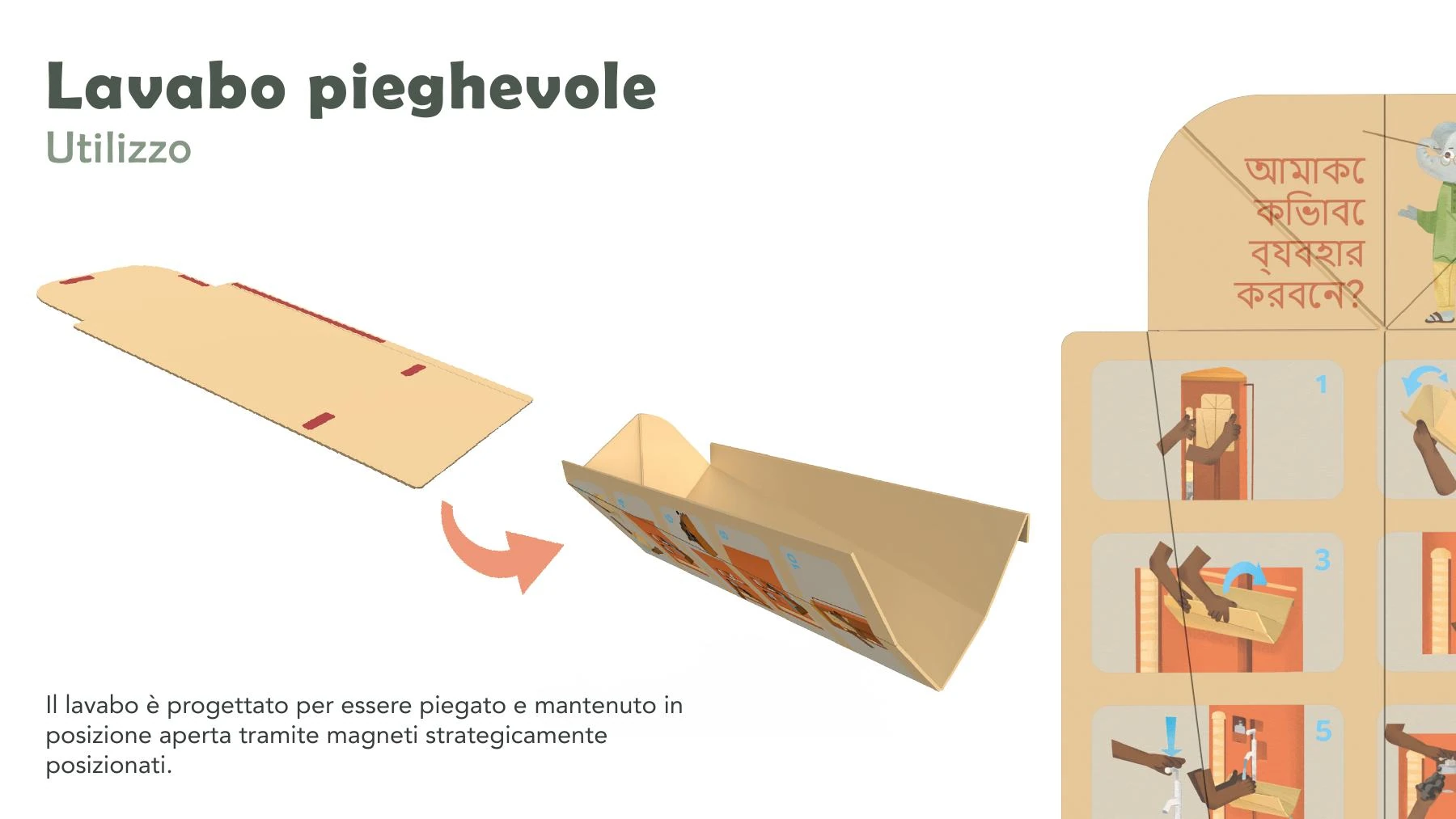

Bìos folding basin use page

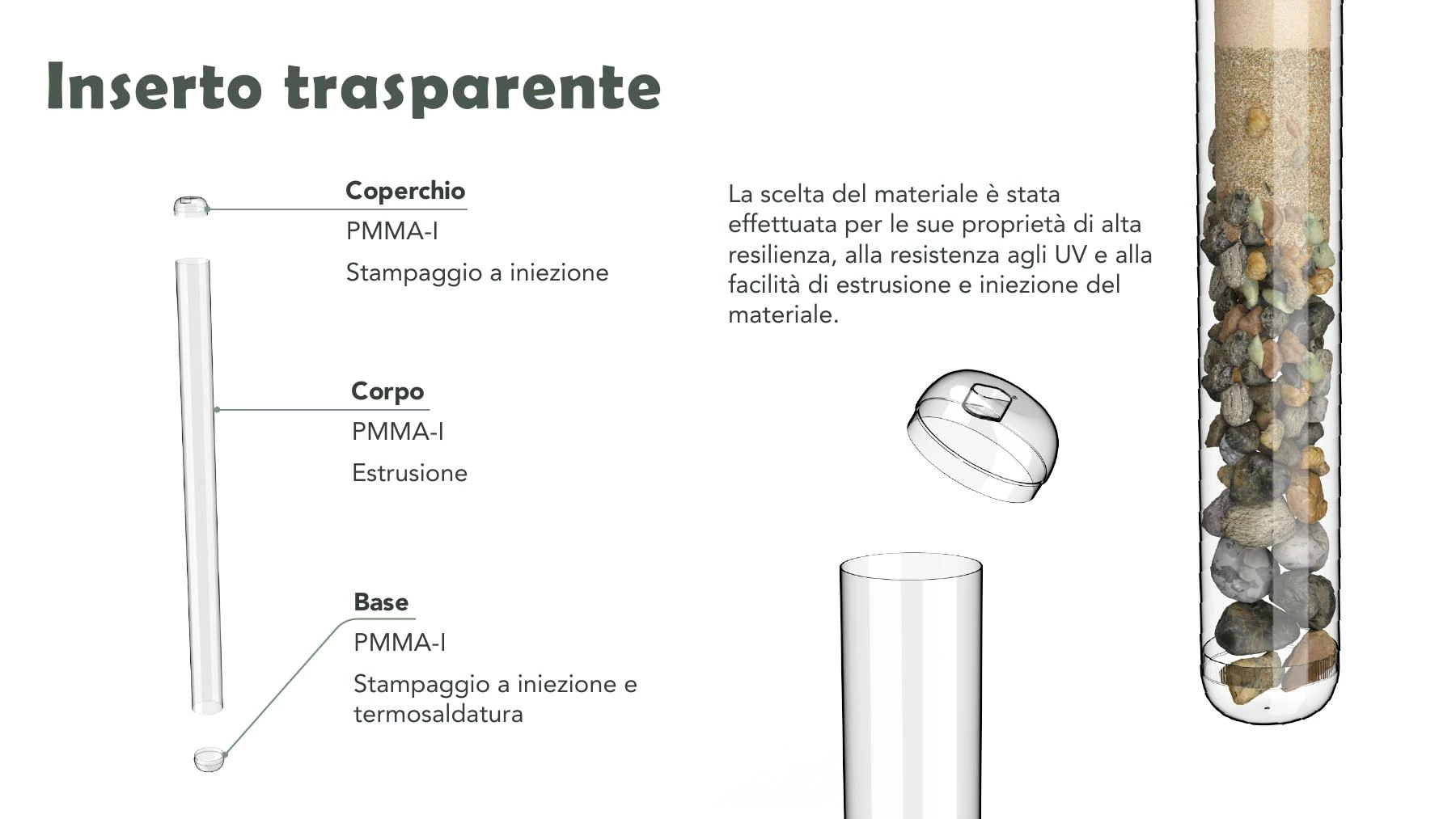

Bìos transparent insert and lid page

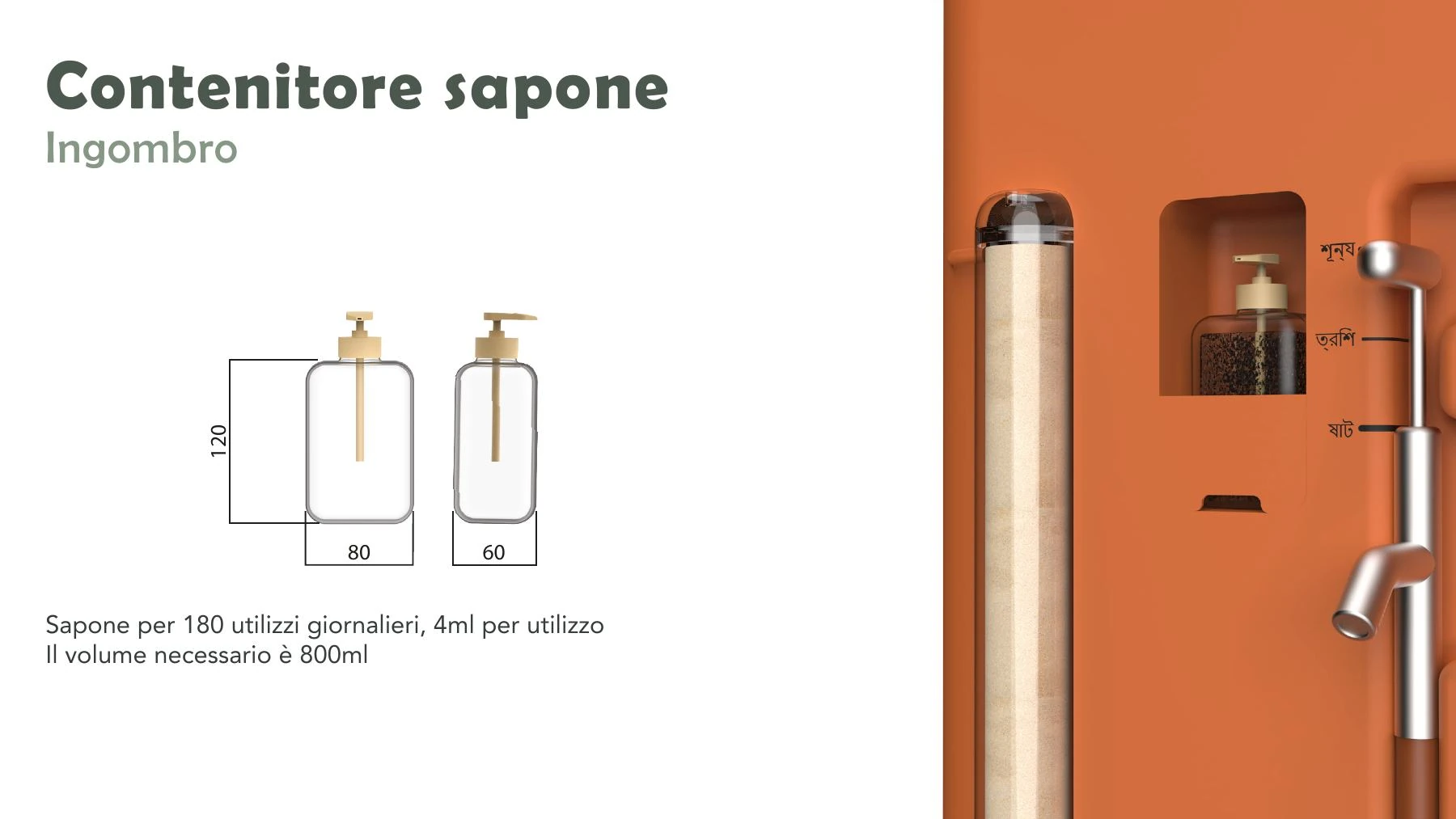

Bìos soap container dimension page

Installation & Use

Placement, anchoring, and storyboard pages show how the product fits into the floating school and daily use routines.

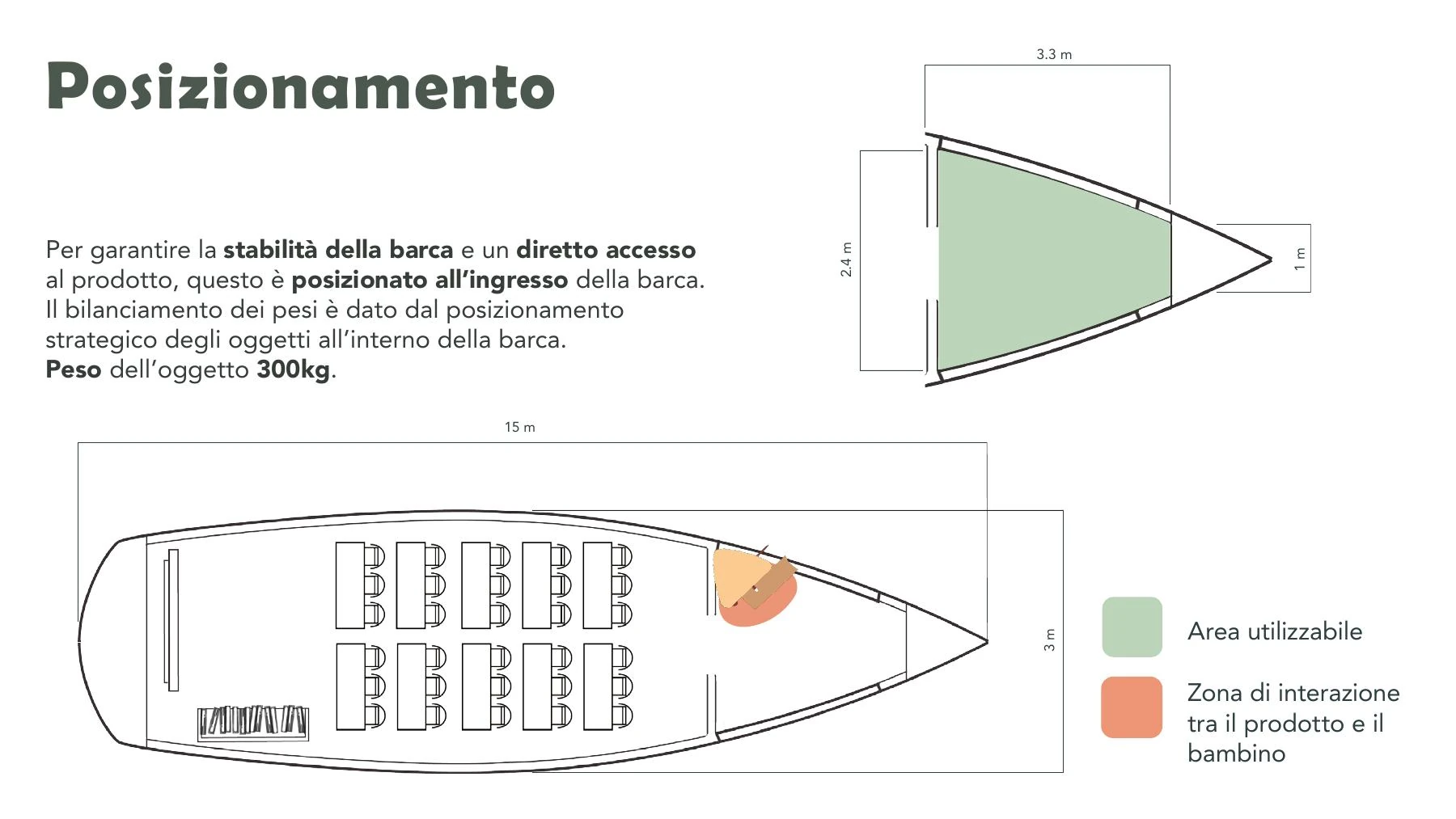

Bìos positioning page for floating school installation

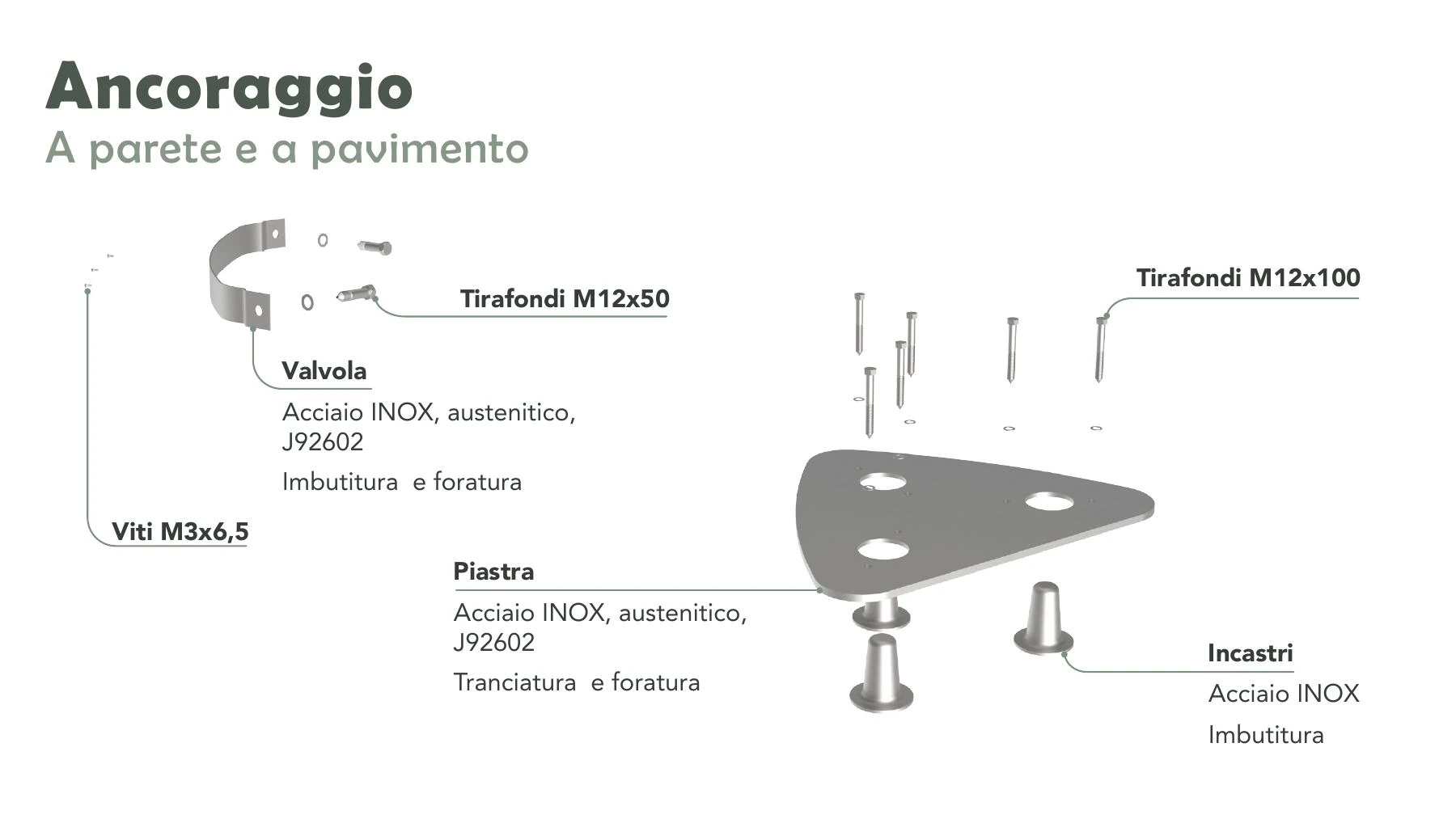

Bìos wall and floor anchoring components page

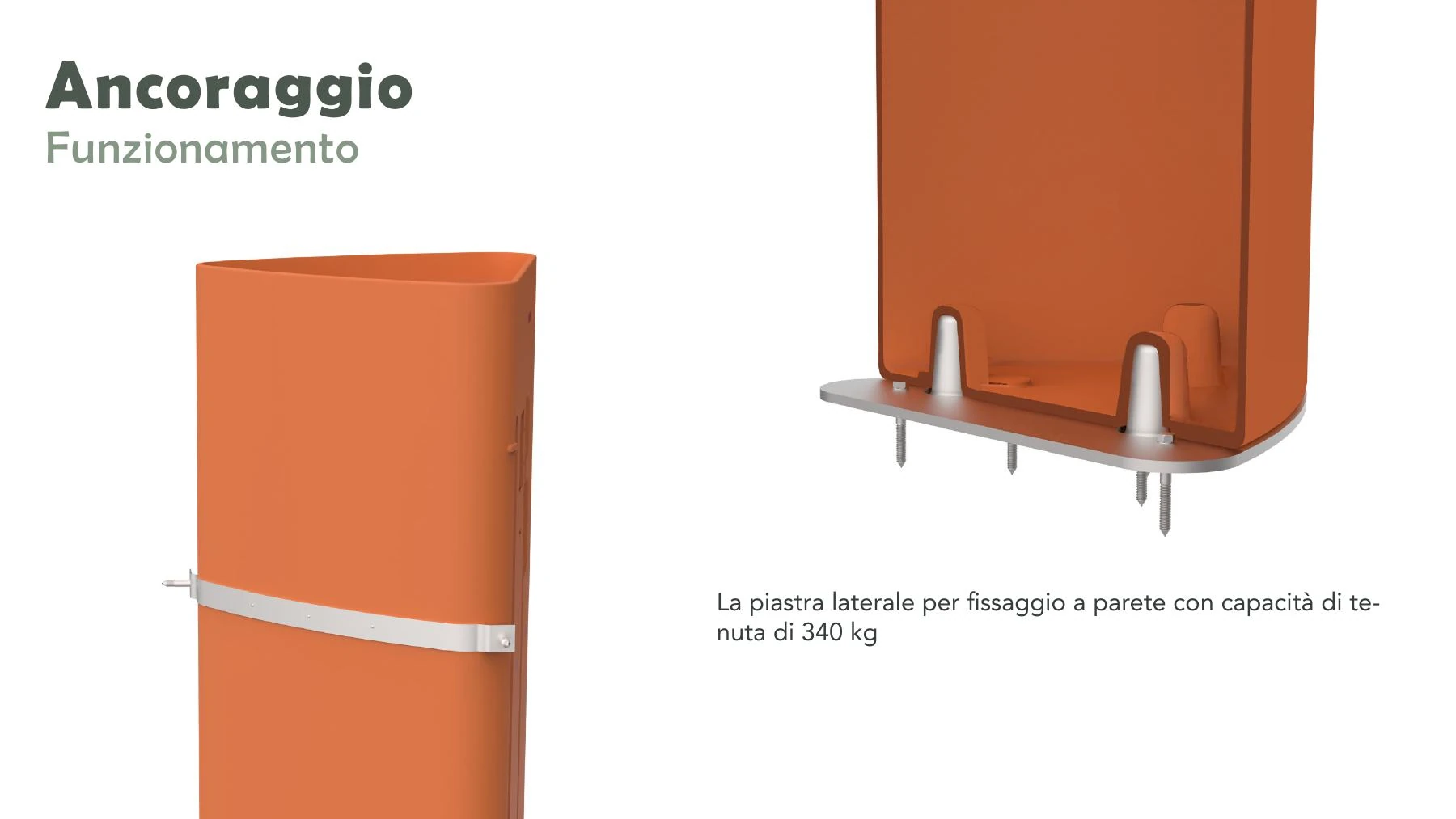

Bìos anchoring function page

Bìos installation context render page

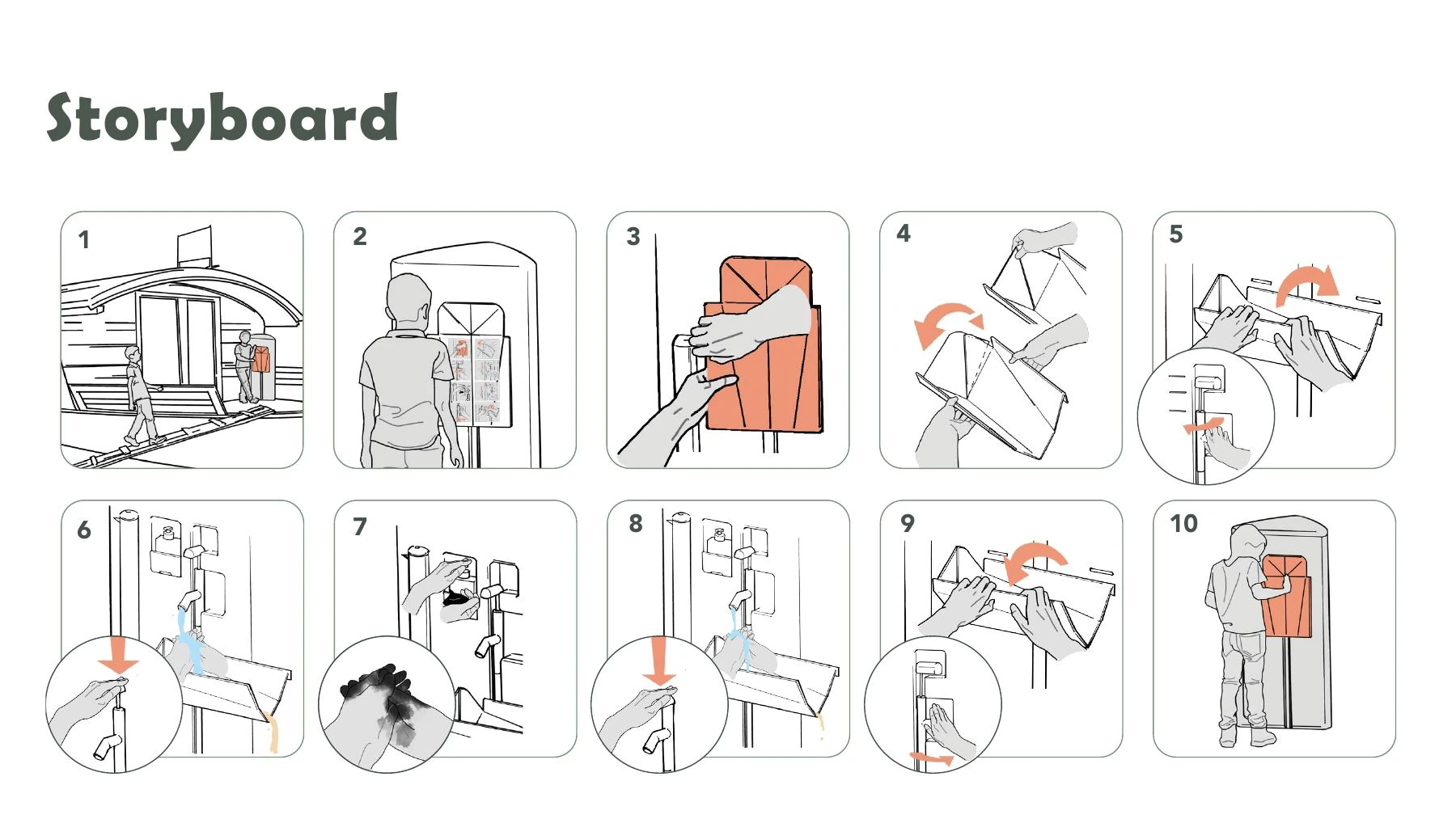

Bìos storyboard page showing use sequence

Maintenance & Education

Maintenance, packaging, assembly, and classroom workshop material extend the product into an educational service system.

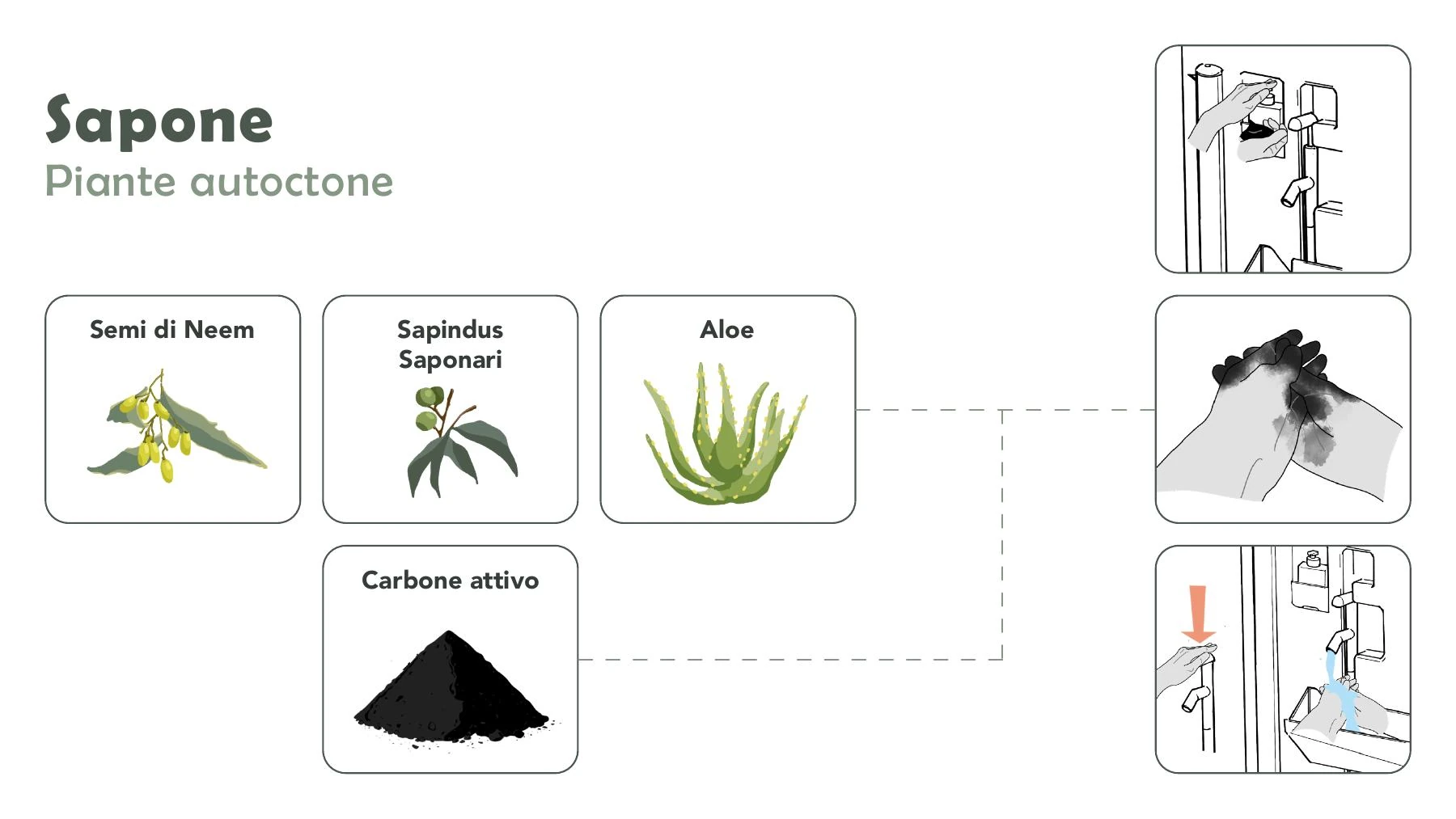

Bìos soap and native plants page

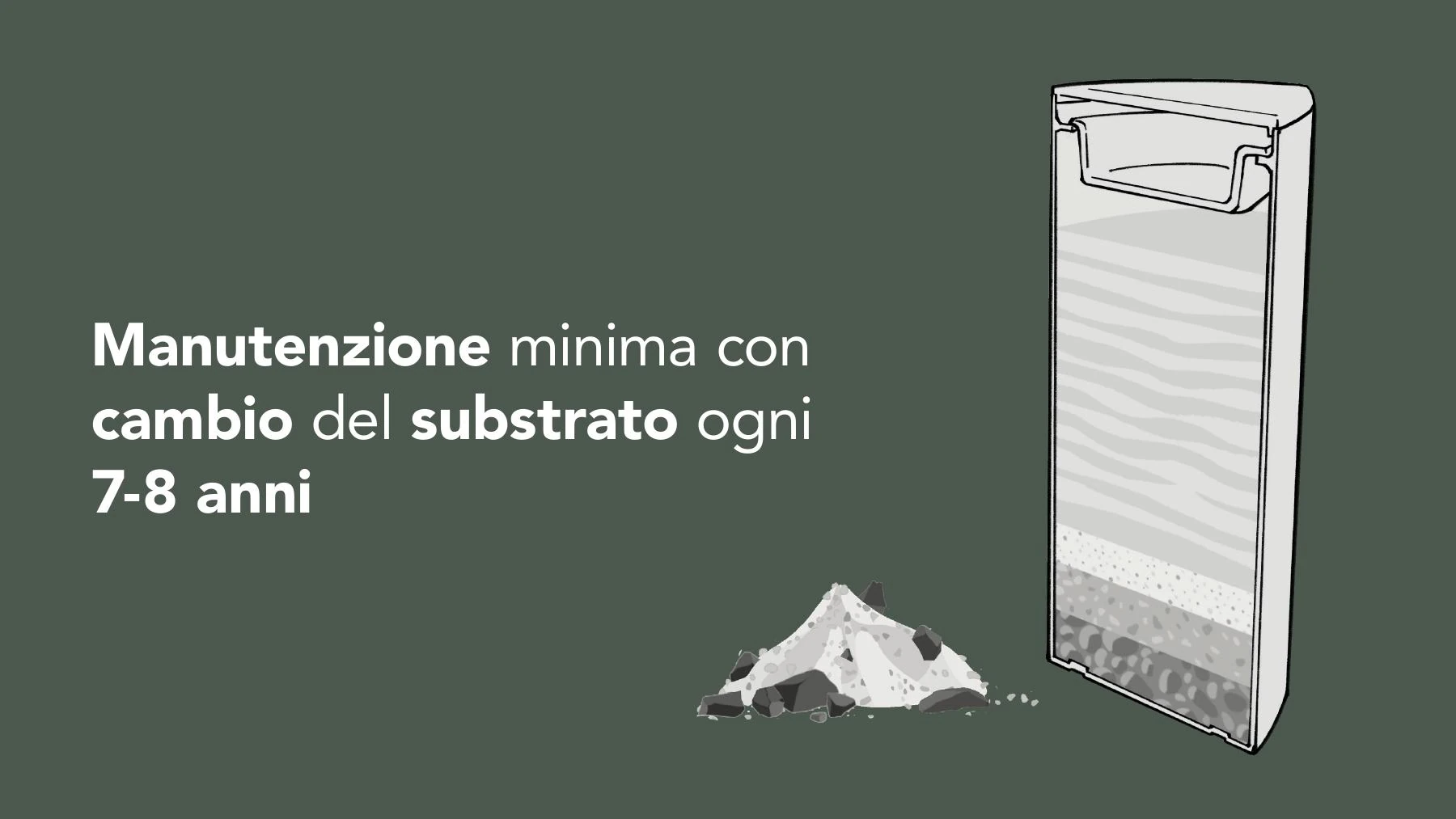

Bìos low-maintenance substrate replacement page

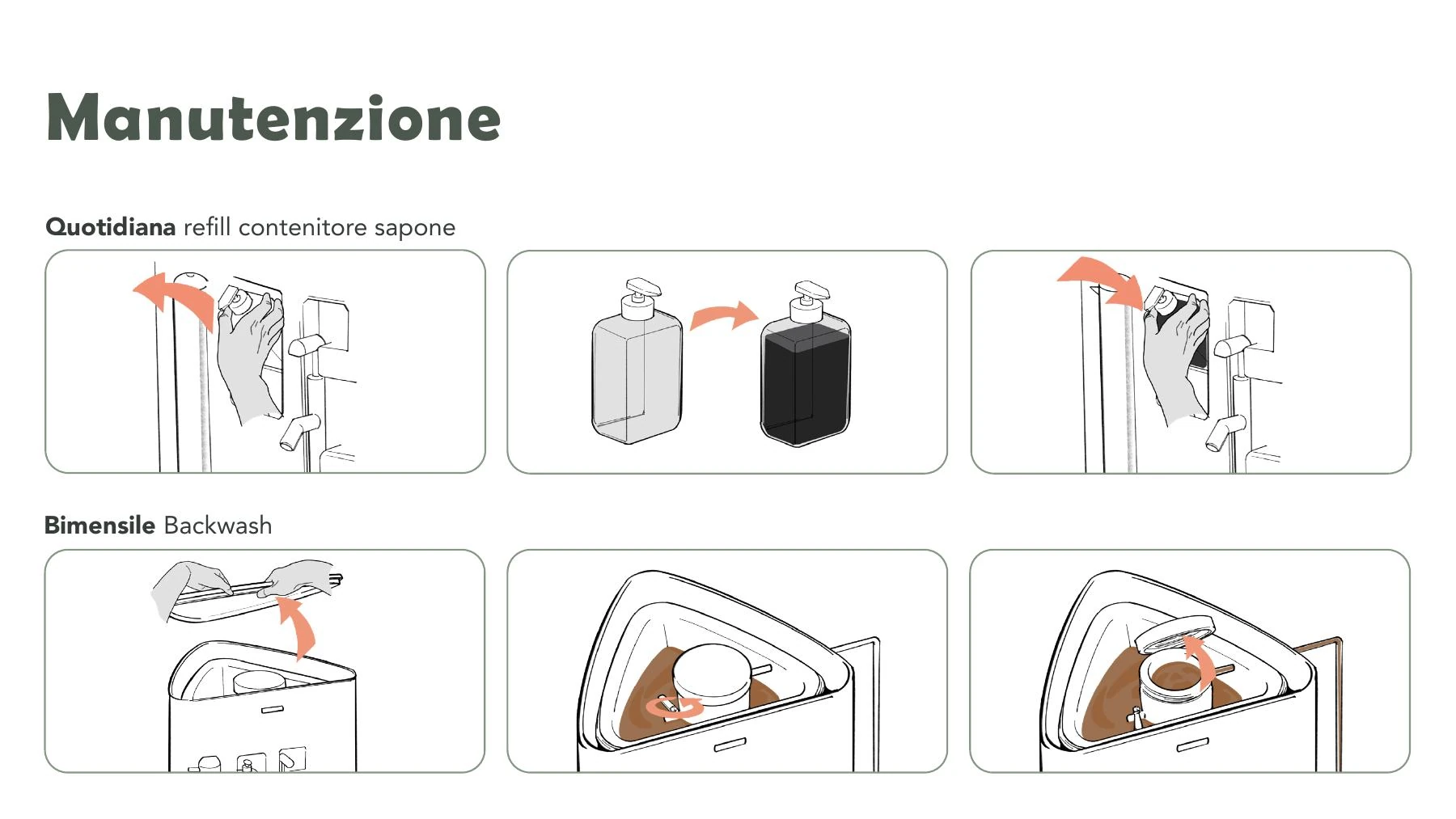

Bìos maintenance routine and backwash page

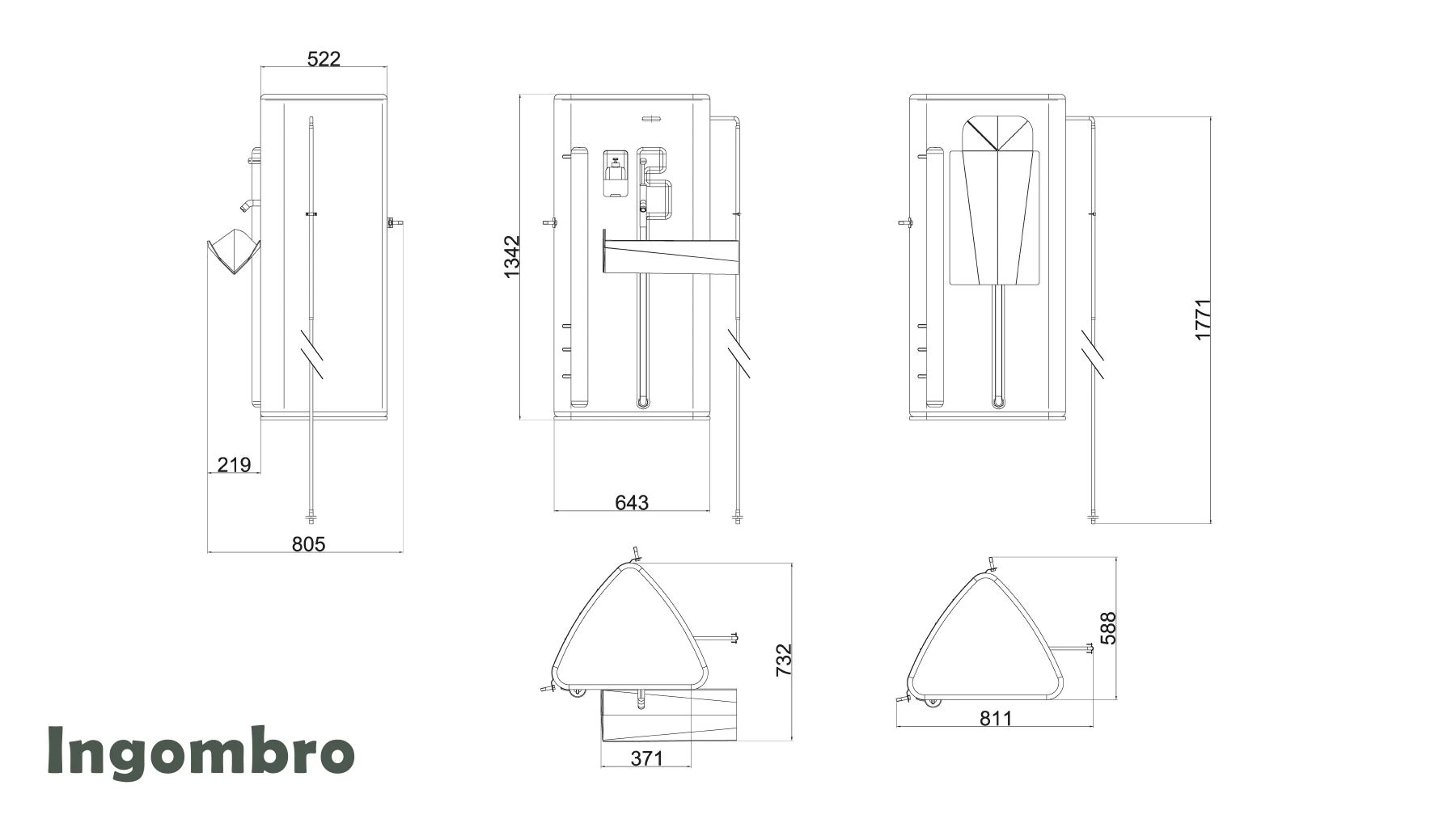

Bìos footprint and dimensional drawings page

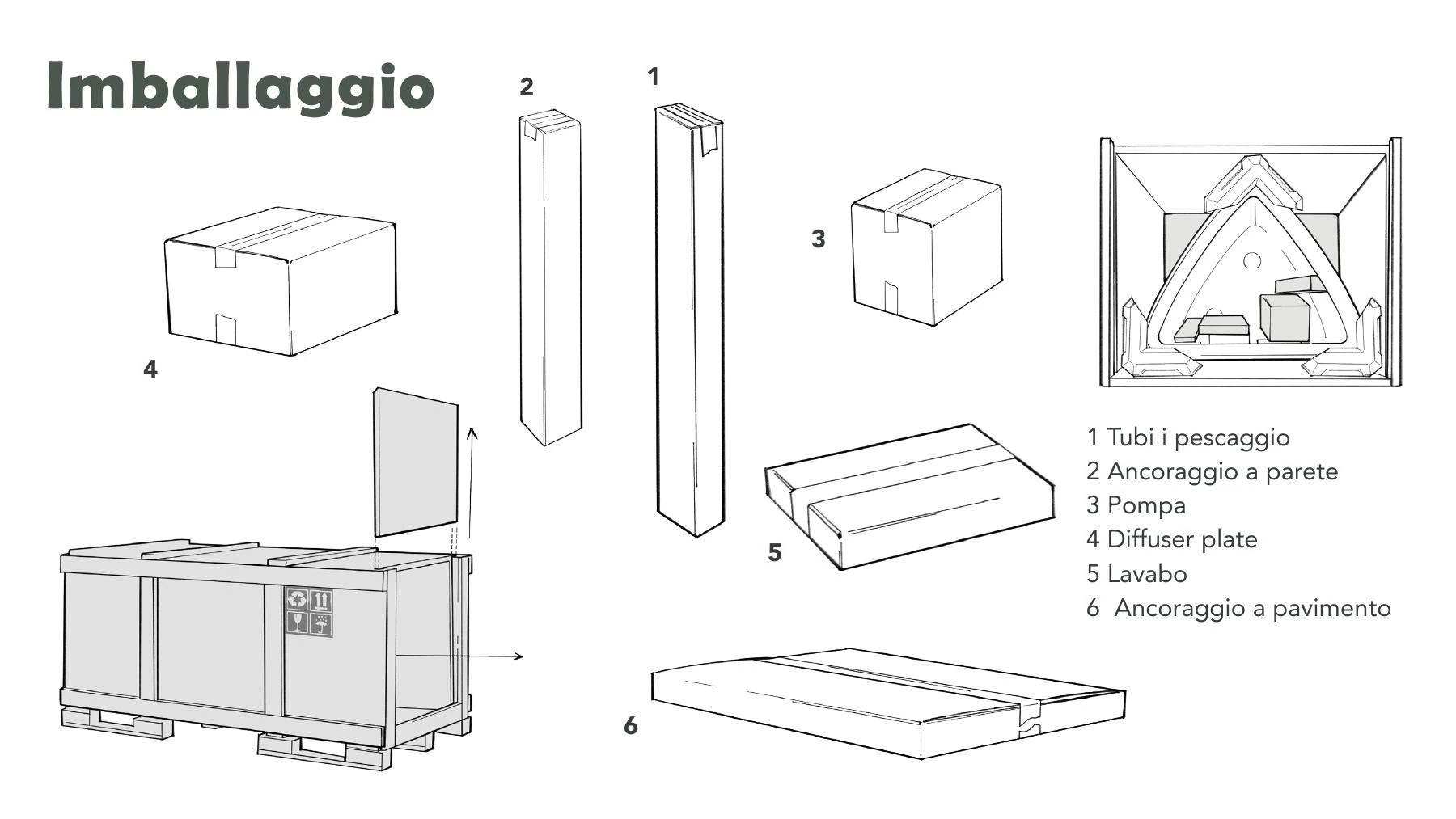

Bìos packaging page

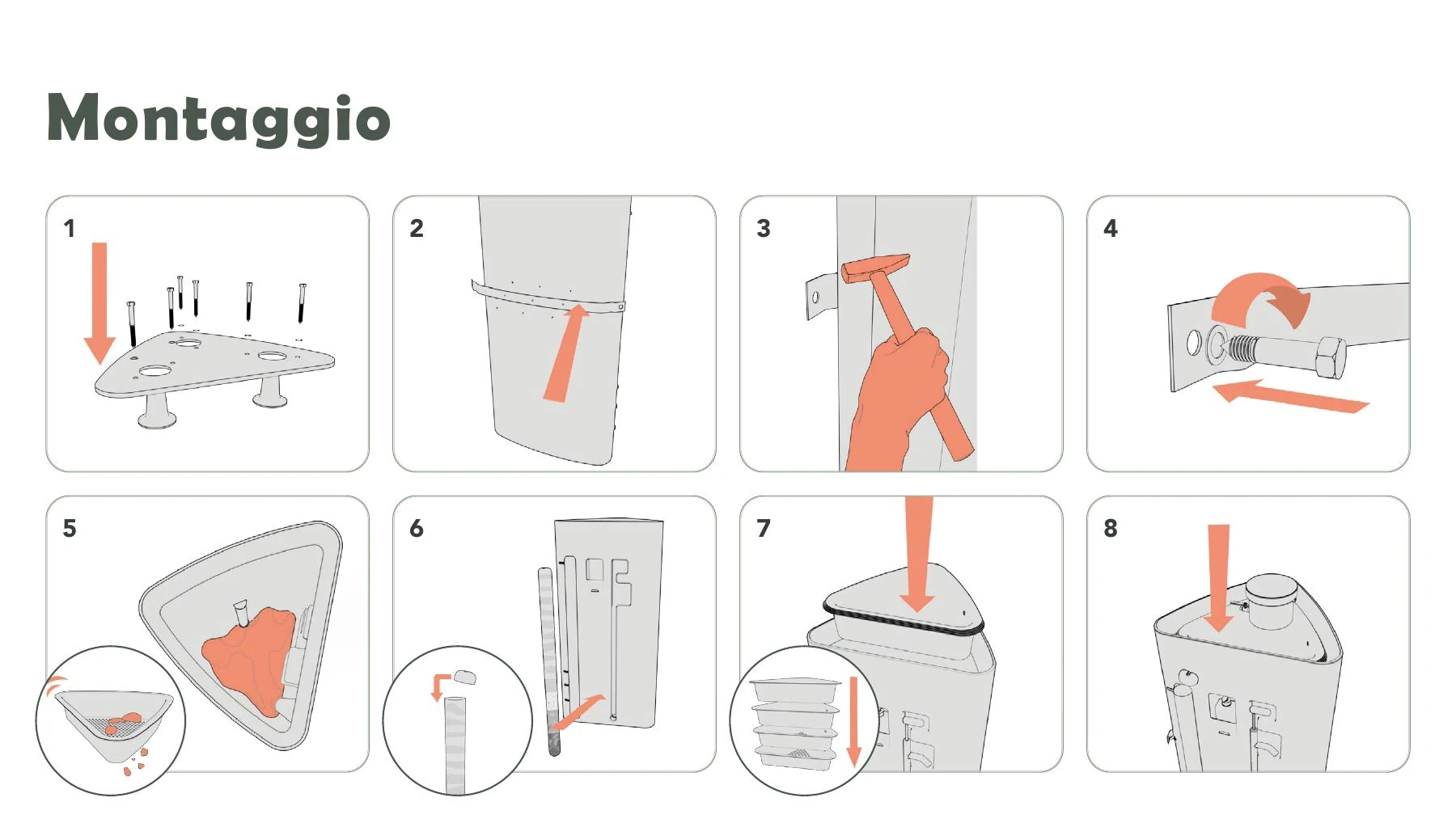

Bìos assembly instructions page one

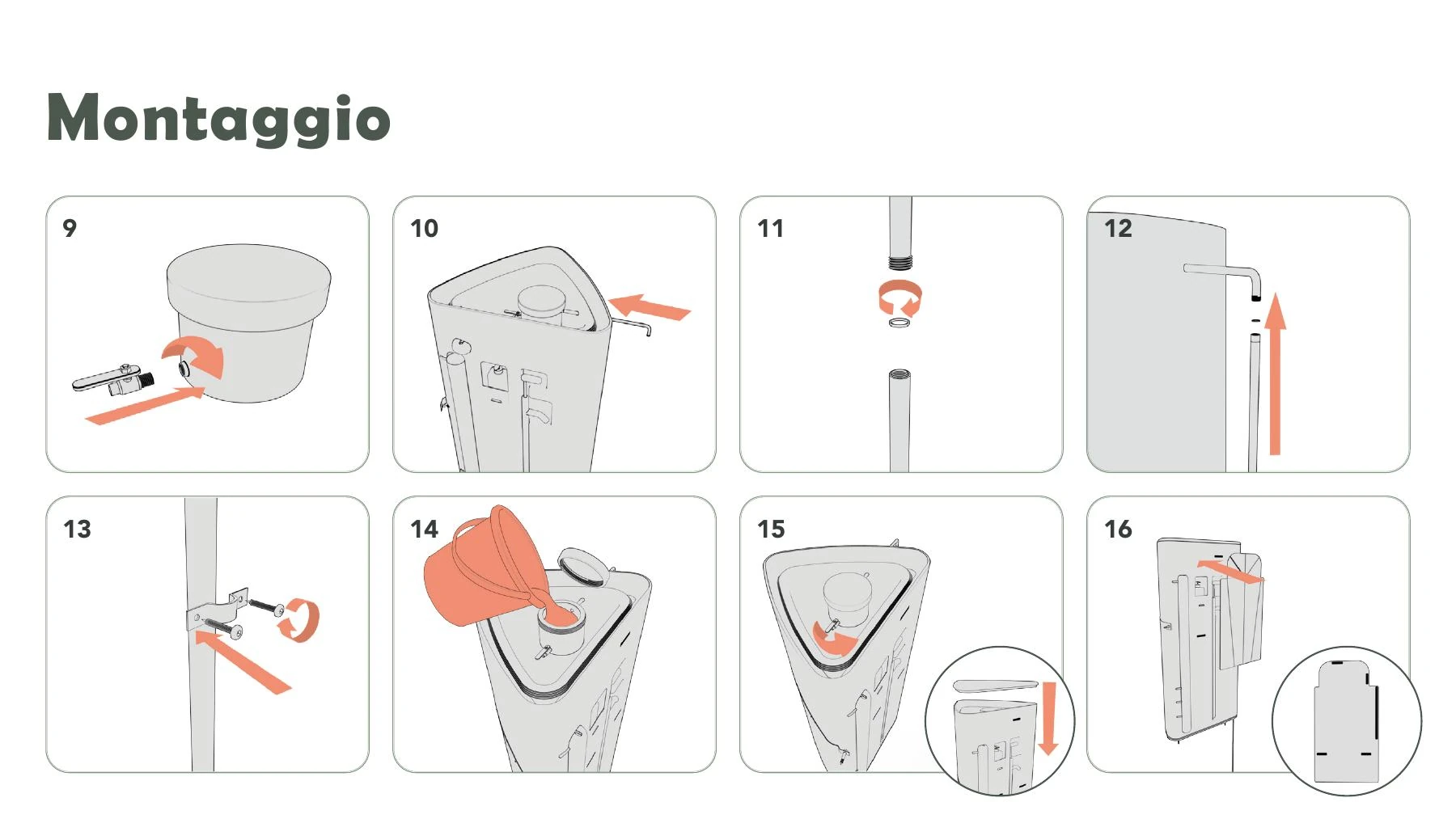

Bìos assembly instructions page two

Bìos school workshop introduction page

Bìos educational workshop material page

Bìos illustrated workshop booklet page

Circularity & Scaling

The closing section connects material reuse, recycling policy, potable water impact, market position, and possible expansion contexts.

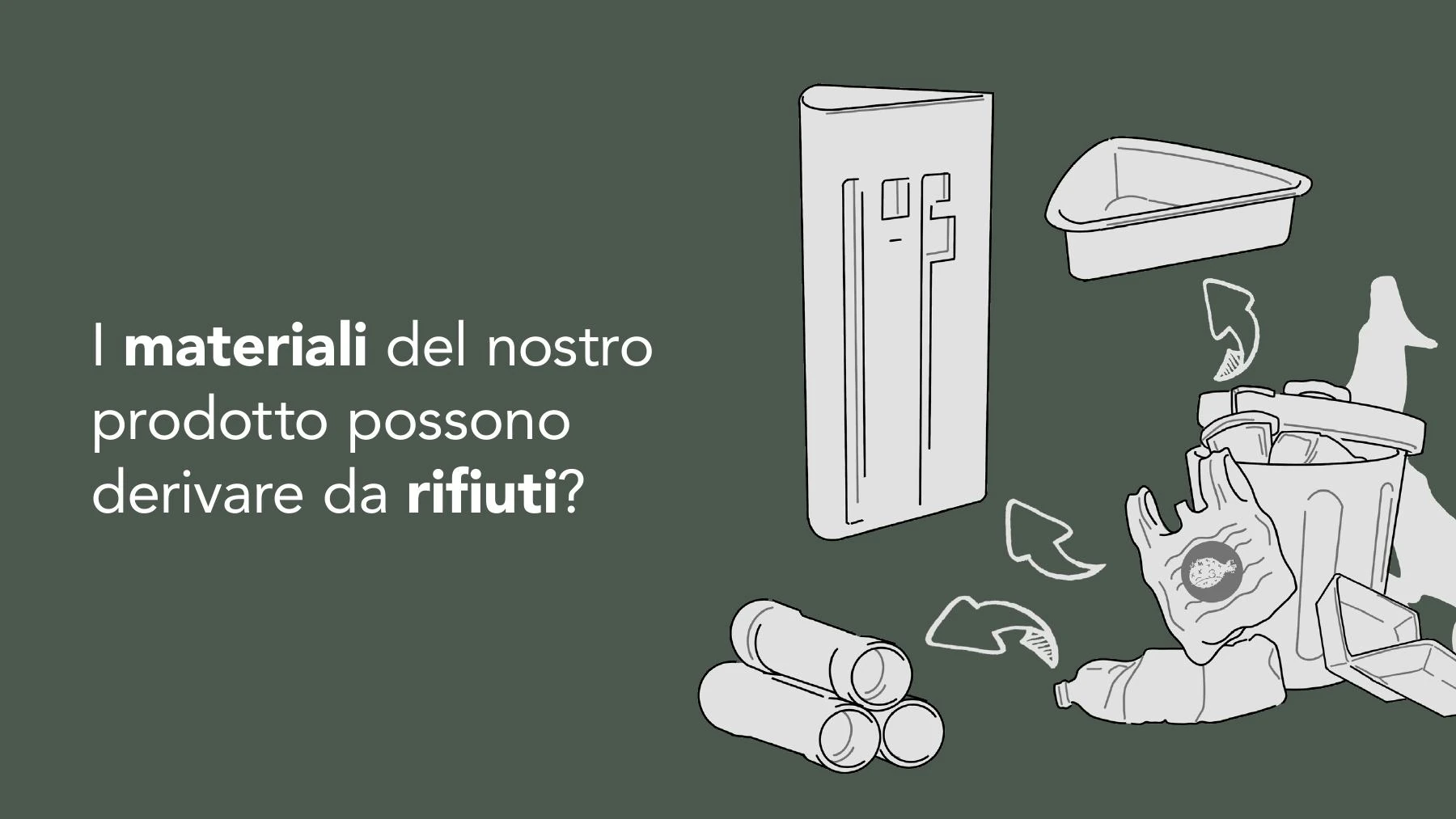

Bìos recycled material question page

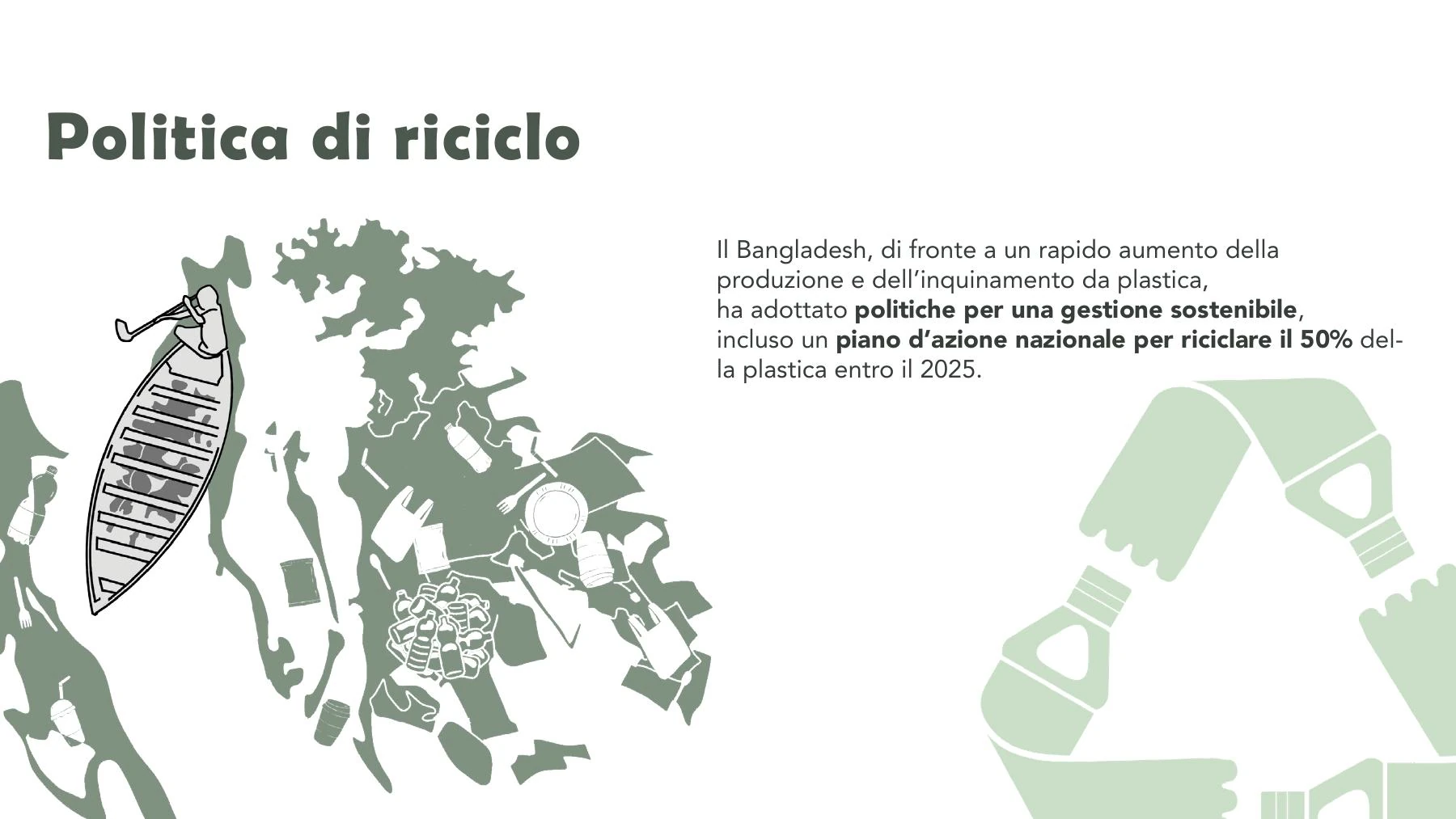

Bìos recycling policy page

Bìos potable water impact page

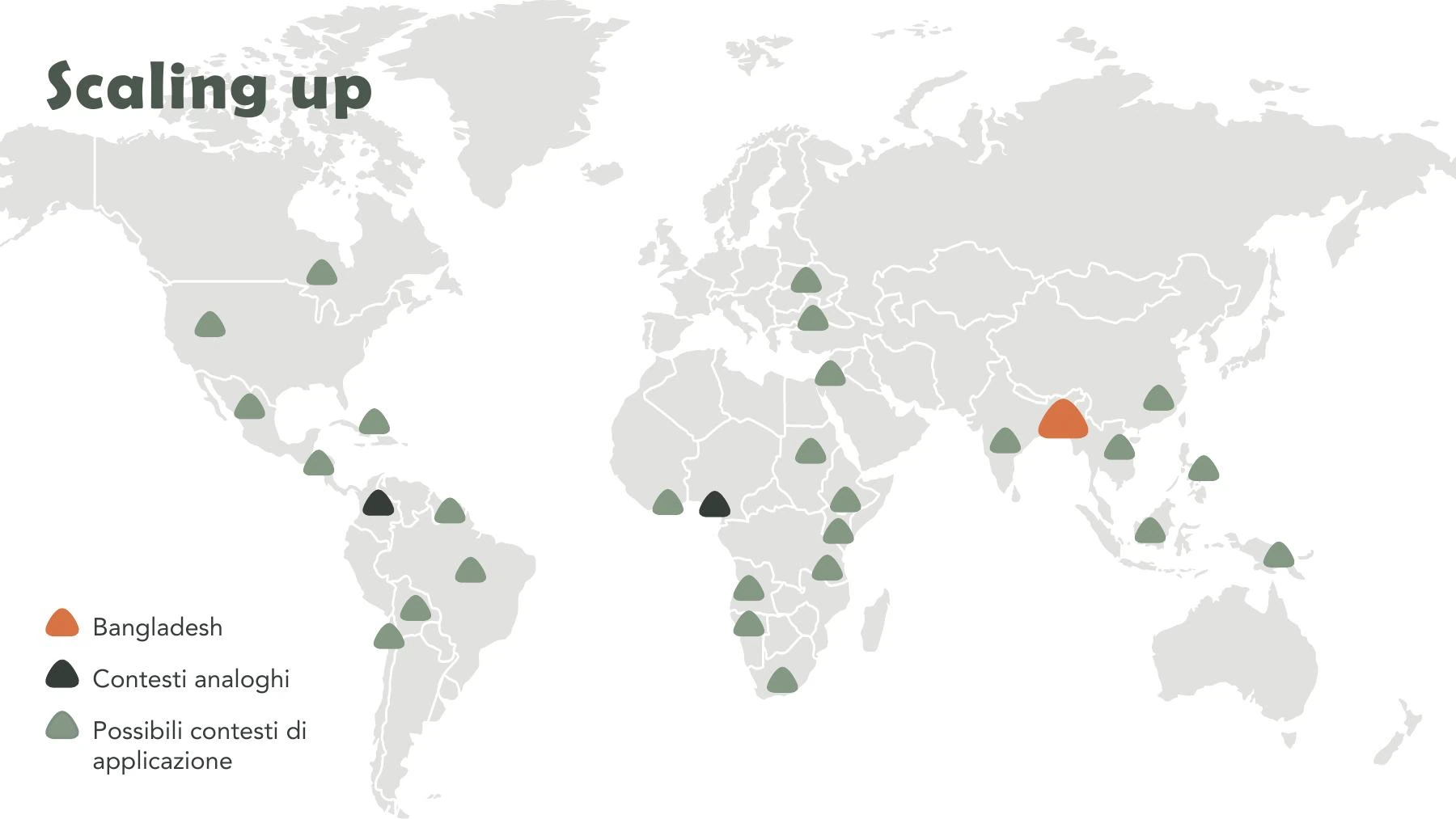

Bìos scaling up map page

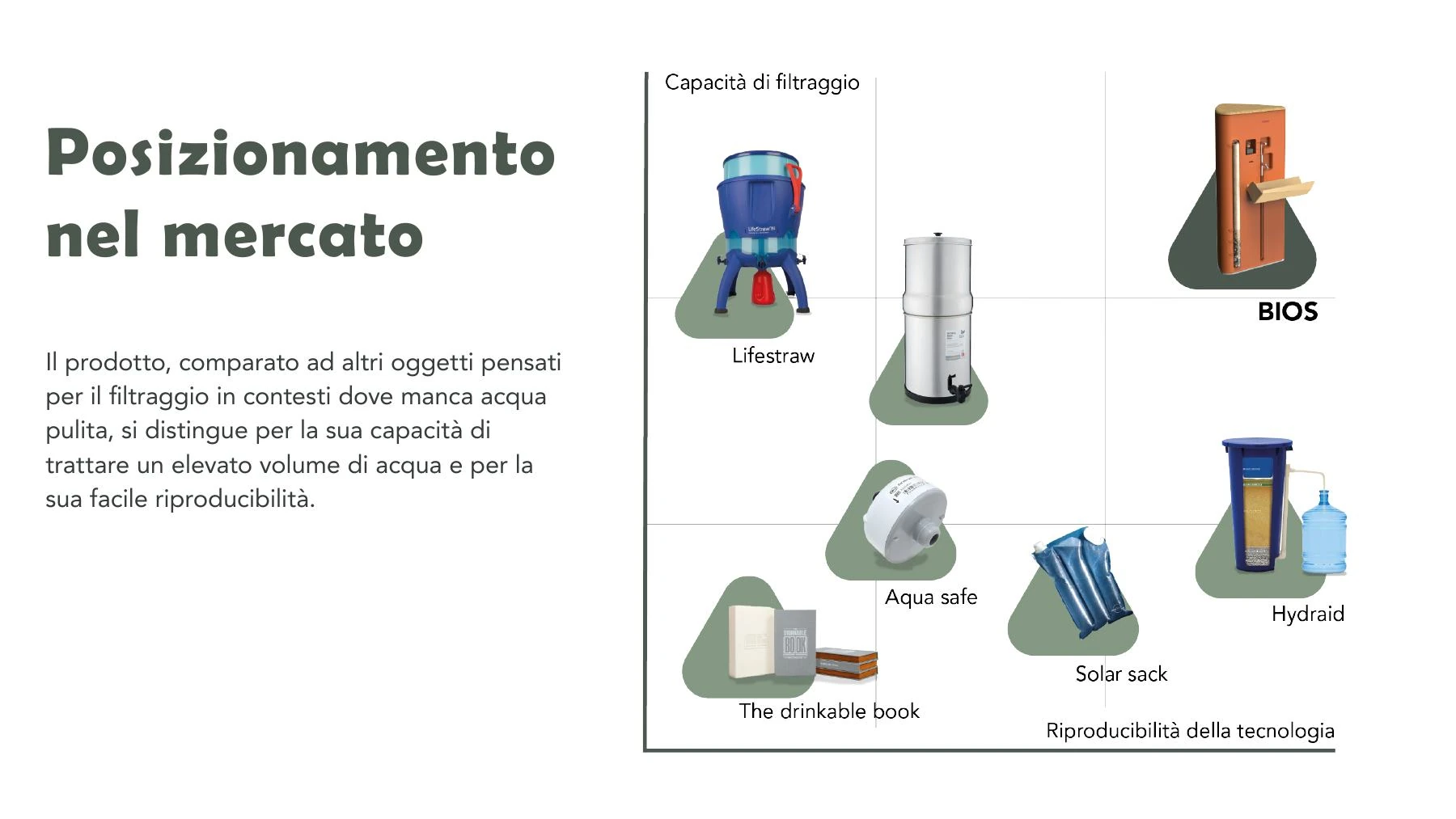

Bìos market positioning page

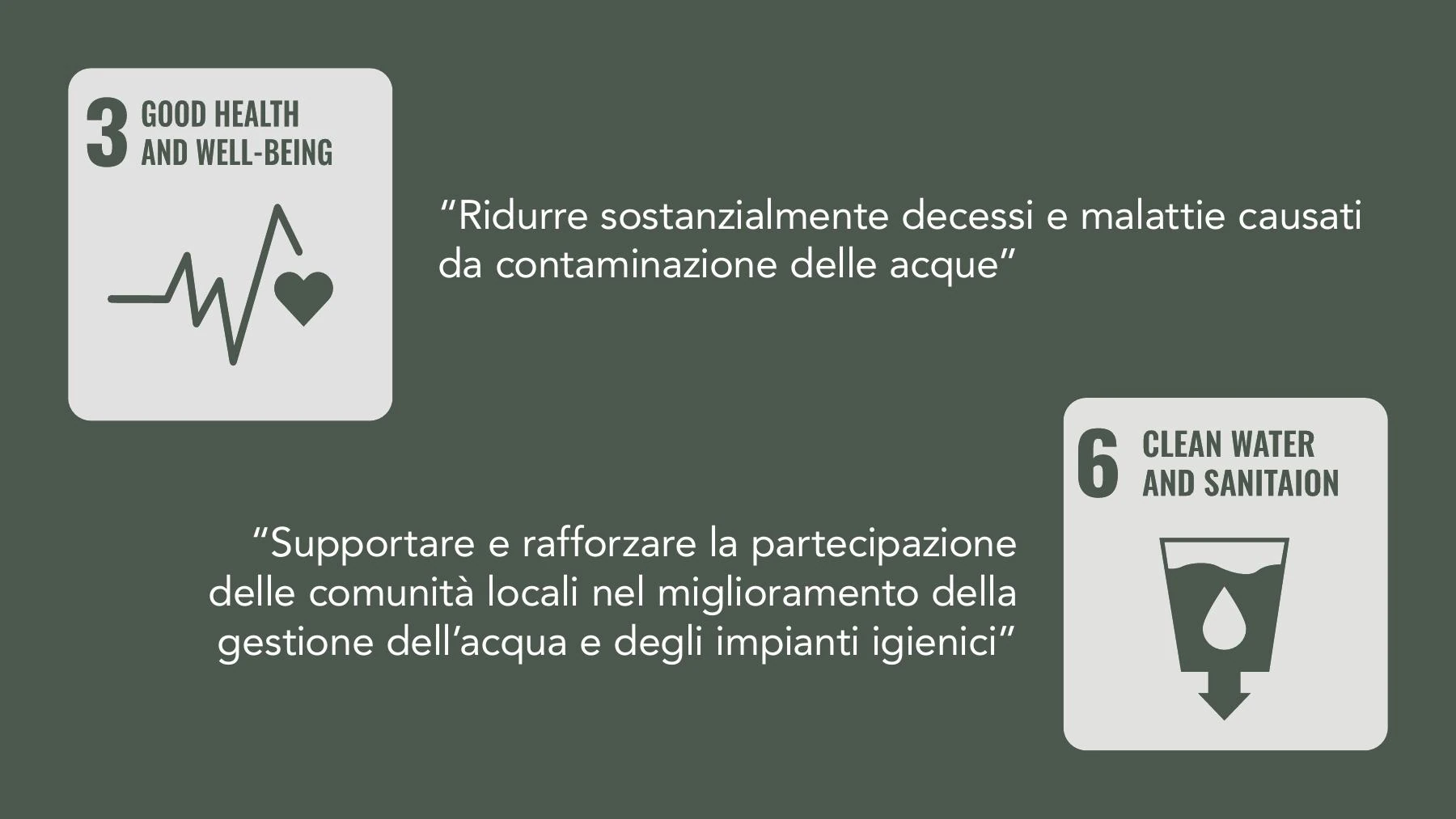

Bìos sustainable development goals closing page
